SKU: UCLP206-18

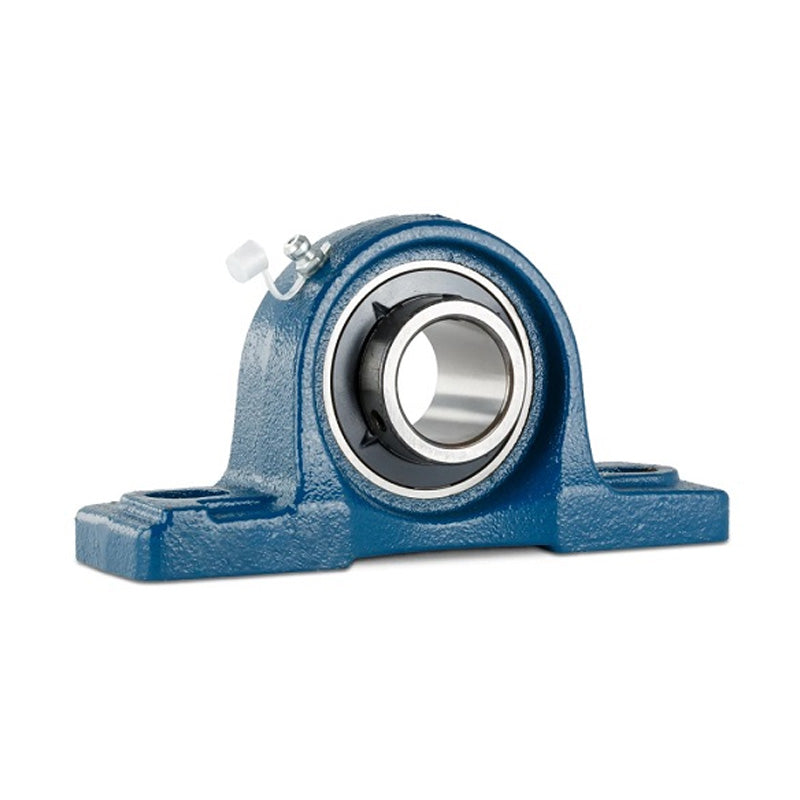

UCLP206-18 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Insert
UCLP206-18 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Insert
Regular price
£15.59
ex VAT£18.71inc. VAT
Regular price
Sale price
£15.59
ex VAT£18.71
inc. VAT
In stock
Price Break
3+
£13.87
4+
£13.10
9+
£12.94
19+
£12.78
49+
£12.63
99+
£12.47
499+
£11.69
999+
£11.54
1999+
£11.38
2999+
£11.22
4999+
£10.91
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCLP
- Bolt Hole Centres:
- 120.65mm = 4.75 (4-3/4) inch
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| h | 1-9/16 inch |
| a | 6-19/64 inch |
| e | 4-3/4 inch |
| b | 1-47/64 inch |
| s1 | 43/64 inch |
| s2 | 25/32 inch |
| g | 21/32 inch |
| w | 3-5/32 inch |
| B | 1.5 inch |
| n | 0.626 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC206-18 |
| Housing no | LP206 |
| Weight | 1.13 kg |
