SKU: UCLP201-8

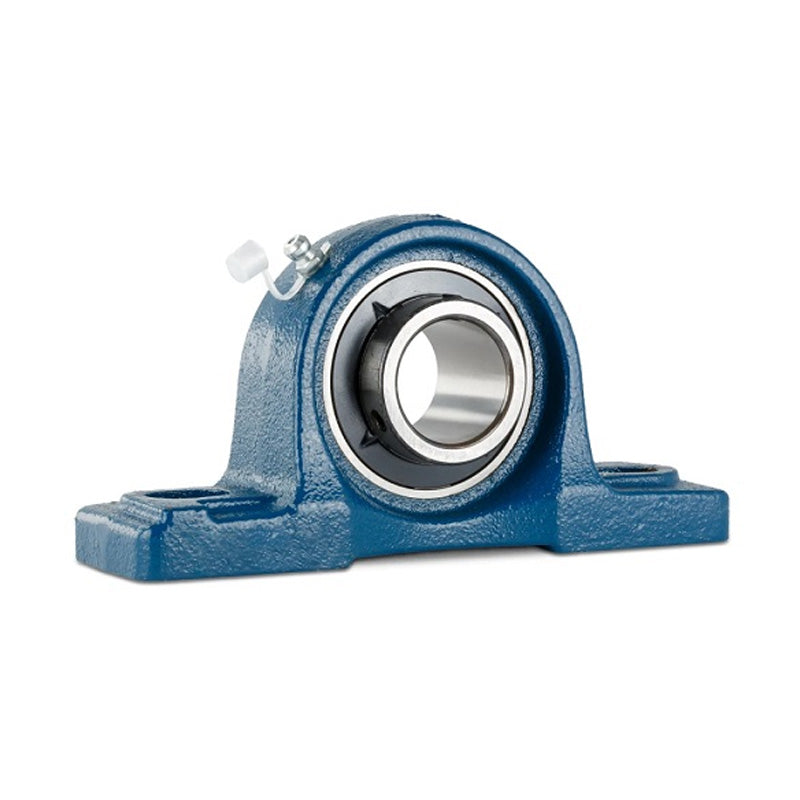

UCLP201-8 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1/2 inch Insert
UCLP201-8 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1/2 inch Insert
Regular price
£12.86
ex VAT£15.43inc. VAT
Regular price
Sale price
£12.86
ex VAT£15.43
inc. VAT
In stock
Price Break
3+
£11.45
4+
£10.80
9+
£10.67
19+
£10.55
49+
£10.42
99+
£10.29
499+
£9.65
999+
£9.52
1999+
£9.39
2999+
£9.26
4999+
£9.00
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- UCLP
- Bolt Hole Centres:
- 95.25mm = 3.75 (3-3/4) inch
Technical
Technical
| d | 1/2 inch |
|---|---|
| h | 1-1/4 inch |
| a | 5 inch |
| e | 3-3/4 inch |
| b | 1-1/2 inch |
| s1 | 1/2 inch |
| s2 | 5/8 inch |
| g | 9/16 inch |
| w | 2-33/64 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC201-8 |
| Housing no | LP201 |
| Weight | 0.68 kg |
