SKU: UCHP210D1-NTN

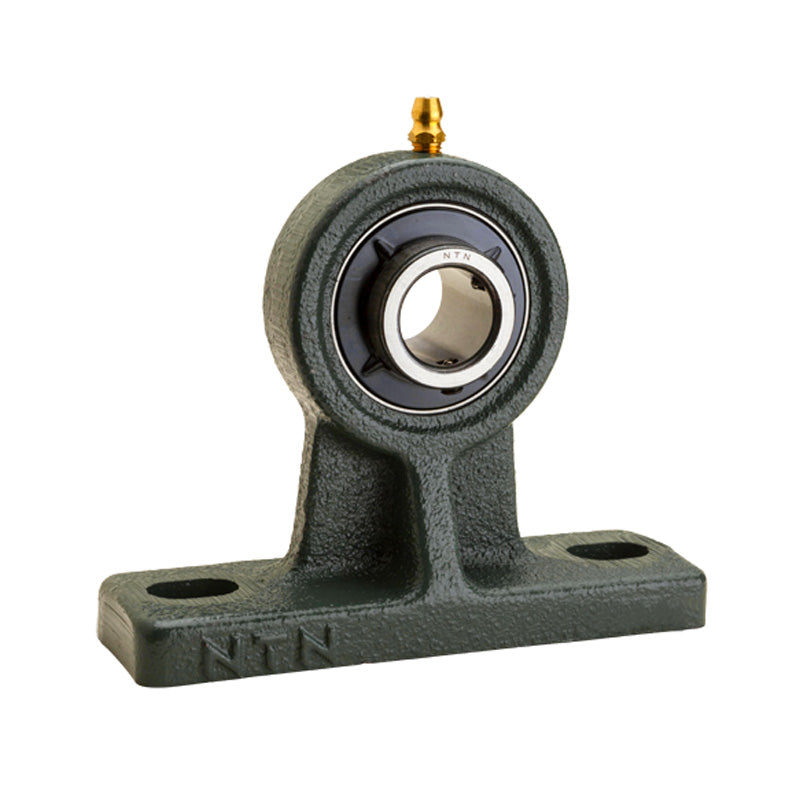

NTN UCHP210D1 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
NTN UCHP210D1 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
£66.41
ex VAT£79.69inc. VAT
Regular price
Sale price
£66.41
ex VAT£79.69
inc. VAT
In stock
Price Break
5+
£65.75
10+
£63.09
20+
£61.76
50+
£59.77
100+
£58.44
500+
£55.12
1000+
£46.49
Couldn't load pickup availability
Description
Description
UCHP/UCPH Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCHP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 110mm |
| L | 206mm |
| J | 159mm |
| A | 70mm |
| N | 20mm |
| N<sub>1</sub> | 22mm |
| H<sub>1</sub> | 22mm |
| H<sub>2</sub> | 165mm |
| B | 51.6mm |
| S | 19mm |
| Fixing bolt | M16 |
| Mass | 3.9 kg |
