SKU: UCHB210D1-NTN

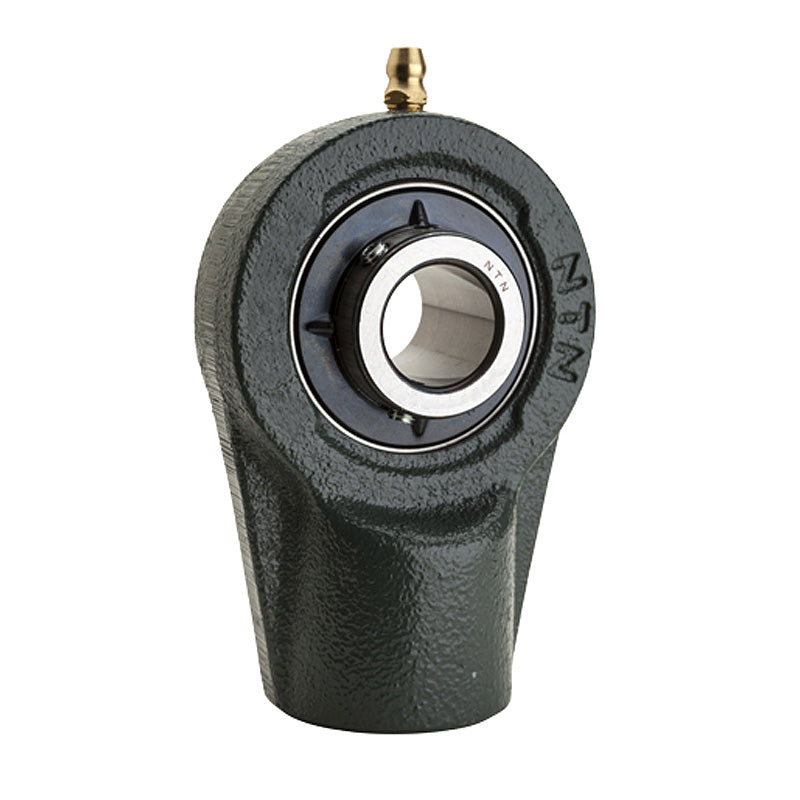

NTN UCHB210D1 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
NTN UCHB210D1 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
Regular price
£56.43
ex VAT£67.72inc. VAT
Regular price
Sale price
£56.43
ex VAT£67.72
inc. VAT
In stock
Price Break
3+
£50.22
4+
£47.40
9+
£46.84
19+
£46.27
49+
£45.71
99+
£45.14
499+
£42.32
999+
£41.76
1999+
£41.19
2999+
£40.63
4999+
£39.50
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| L | 118mm |
| H<sub>1</sub> | 142mm |
| c | 5mm |
| A | 37mm |
| H | 83mm |
| N | RP1 |
| D | 48mm |
| j | 21mm |
| B | 51.6mm |
| S | 19mm |
| Mass | 2.2 kg |
