SKU: UCHA212-39

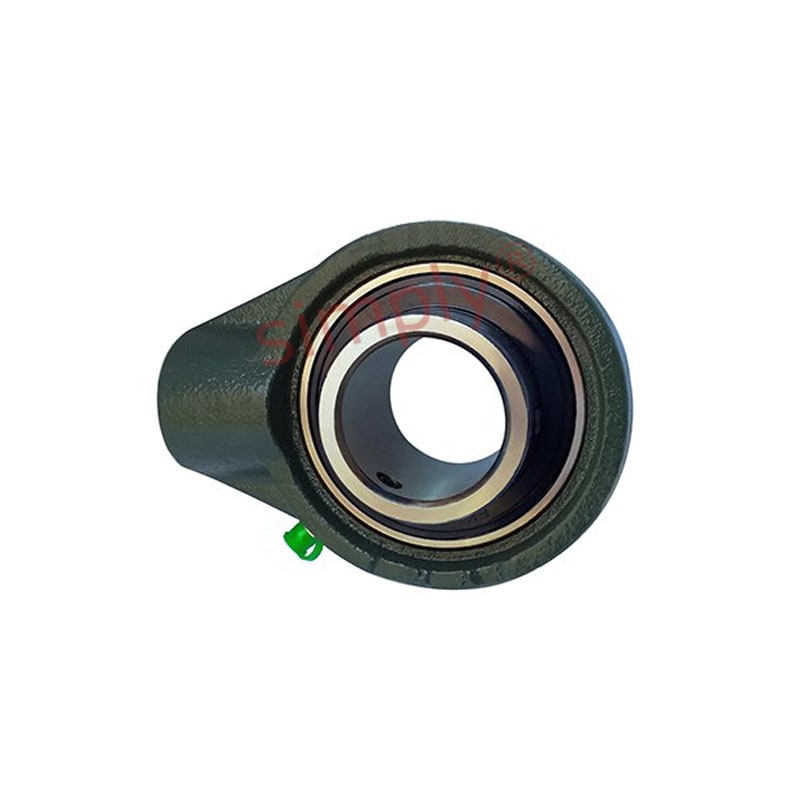

UCHA212-39 Imperial Cast Iron Hanger Bearing Unit with 2-7/16 inch Bore Insert
UCHA212-39 Imperial Cast Iron Hanger Bearing Unit with 2-7/16 inch Bore Insert
Regular price
£91.14
ex VAT£109.37inc. VAT
Regular price
Sale price
£91.14
ex VAT£109.37
inc. VAT
In stock
Price Break
10+
£81.11
19+
£76.56
29+
£75.65
39+
£74.73
49+
£73.82
74+
£72.91
99+
£68.36
199+
£67.44
249+
£66.53
499+
£65.62
999+
£63.80
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- UCHA
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| h | 4-1/64 inch |
| w | 6-13/16 inch |
| b | 5-19/32 inch |
| c | 23/64 inch |
| a | 2-23/64 inch |
| s | G1-1/4 |
| l | 1-7/64 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bearing no | UC212-39 |
| Housing no | HA212 |
| Weight | 3.465 kg |
