SKU: UCHA212-36

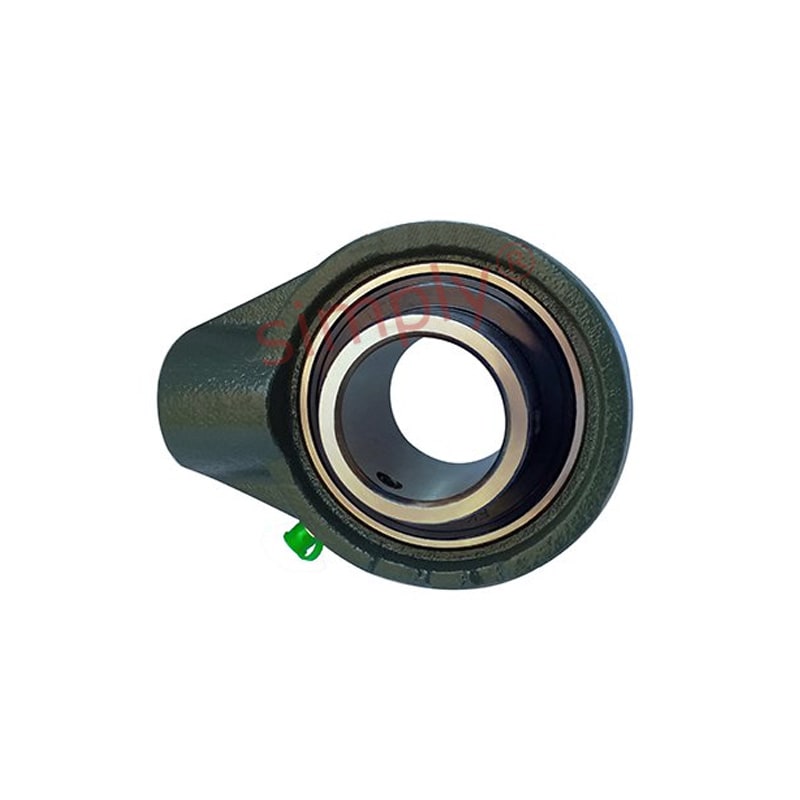

UCHA212-36 Imperial Cast Iron Hanger Bearing Unit with 2-1/4 inch Bore Insert
UCHA212-36 Imperial Cast Iron Hanger Bearing Unit with 2-1/4 inch Bore Insert
Regular price
£71.65
ex VAT£85.98inc. VAT
Regular price
Sale price
£71.65
ex VAT£85.98
inc. VAT
In stock
Price Break
3+
£63.77
4+
£60.18
9+
£59.47
19+
£58.75
49+
£58.03
99+
£57.32
499+
£53.74
999+
£53.02
1999+
£52.30
2999+
£51.59
4999+
£50.15
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UCHA
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| h | 4-1/64 inch |
| w | 6-13/16 inch |
| b | 5-19/32 inch |
| c | 23/64 inch |
| a | 2-23/64 inch |
| s | G1-1/4 |
| l | 1-7/64 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bearing no | UC212-36 |
| Housing no | HA212 |
| Weight | 3.685 kg |
