SKU: UCHA211-35

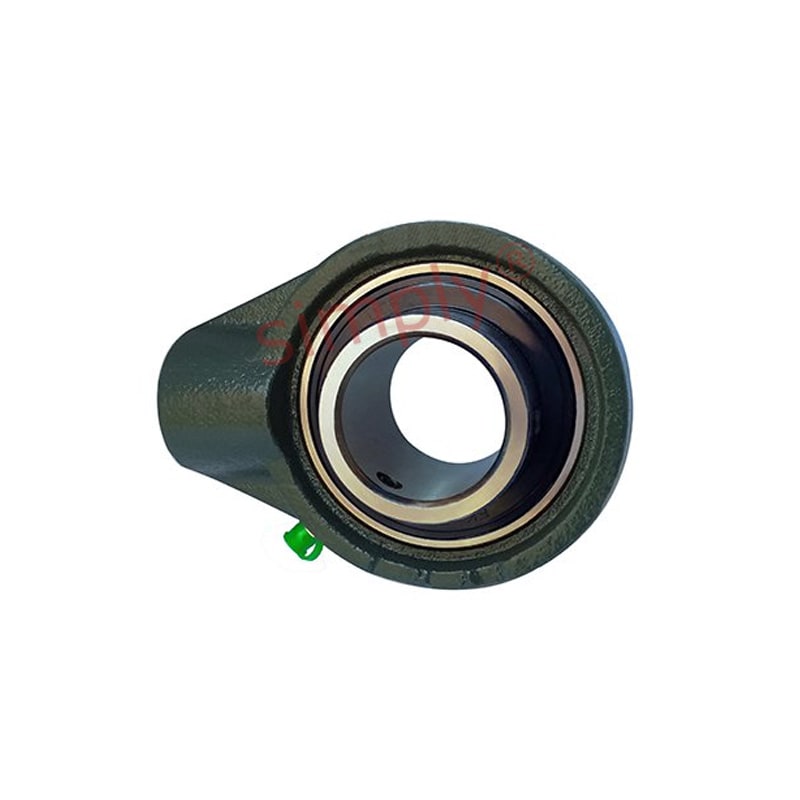

UCHA211-35 Imperial Cast Iron Hanger Bearing Unit with 2-3/16 inch Bore Insert
UCHA211-35 Imperial Cast Iron Hanger Bearing Unit with 2-3/16 inch Bore Insert
Regular price
£51.53
ex VAT£61.84inc. VAT
Regular price
Sale price
£51.53
ex VAT£61.84
inc. VAT
In stock
Price Break
3+
£45.86
4+
£43.28
9+
£42.77
19+
£42.25
49+
£41.74
99+
£41.22
499+
£38.65
999+
£38.13
1999+
£37.62
2999+
£37.10
4999+
£36.07
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCHA
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| h | 3-27/64 inch |
| w | 5-29/32 inch |
| b | 4-61/64 inch |
| c | 9/32 inch |
| a | 2-23/64 inch |
| s | G1-1/4 |
| l | 63/64 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bearing no | UC211-35 |
| Housing no | HA211 |
| Weight | 2.427 kg |
