SKU: UCHA210-30

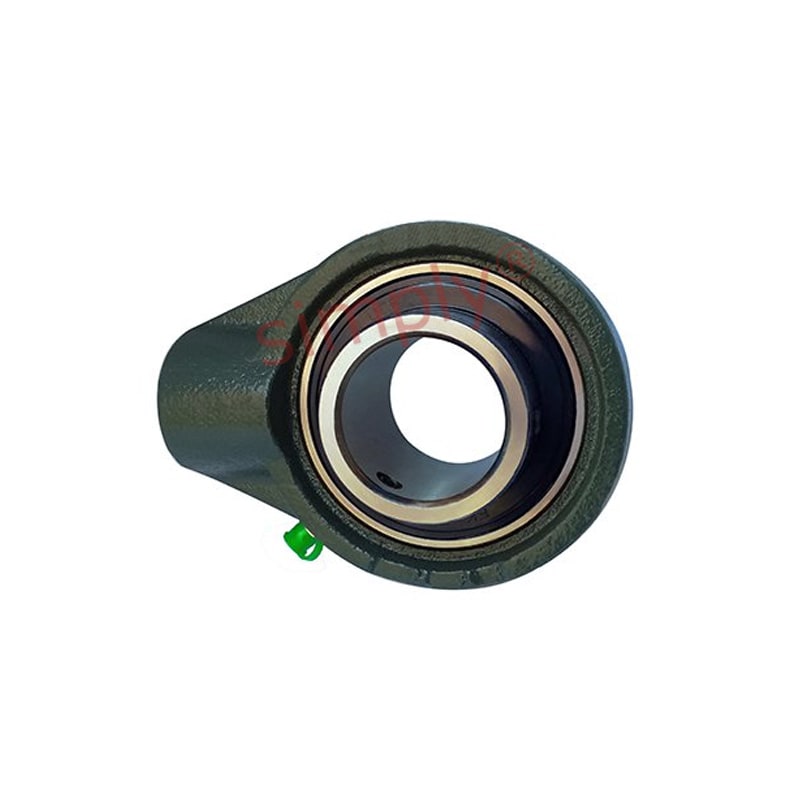

UCHA210-30 Imperial Cast Iron Hanger Bearing Unit with 1-7/8 inch Bore Insert
UCHA210-30 Imperial Cast Iron Hanger Bearing Unit with 1-7/8 inch Bore Insert
Regular price
£48.30
ex VAT£57.96inc. VAT
Regular price
Sale price
£48.30
ex VAT£57.96
inc. VAT
In stock
Price Break
3+
£42.99
4+
£40.57
9+
£40.09
19+
£39.61
49+
£39.12
99+
£38.64
499+
£36.22
999+
£35.74
1999+
£35.26
2999+
£34.78
4999+
£33.81
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Style:
- UCHA
Technical
Technical
| d | 1-7/8 inch |
|---|---|
| h | 3-17/64 inch |
| w | 5-19/32 inch |
| b | 4-41/64 inch |
| c | 13/64 inch |
| a | 1-57/64 inch |
| s | G1 |
| l | 53/64 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing no | UC210-30 |
| Housing no | HA210 |
| Weight | 2.11 kg |
