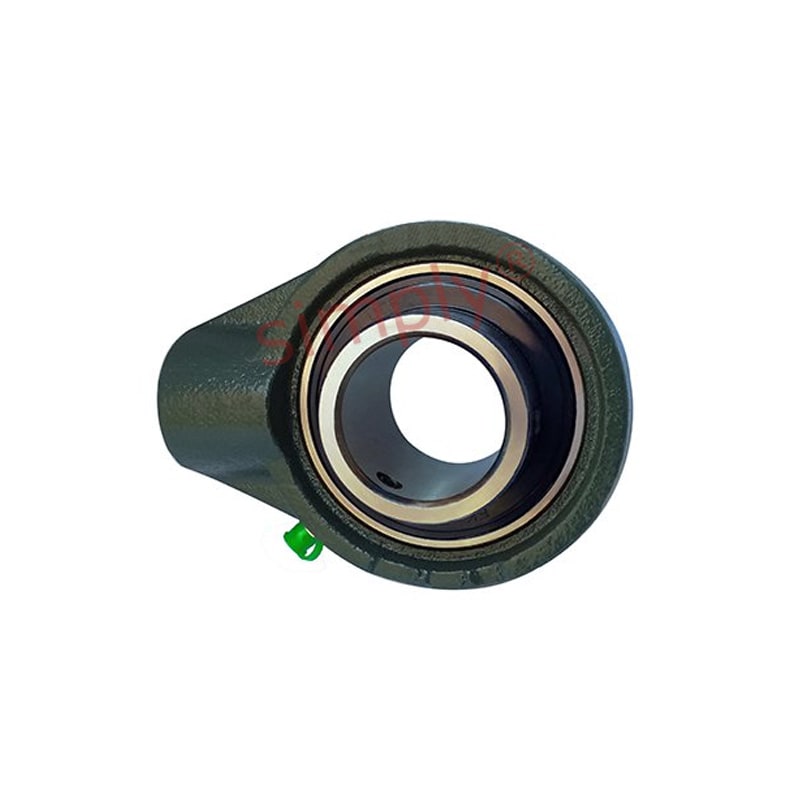

UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
Regular price
£41.69
ex VAT£50.03inc. VAT
Regular price
Sale price
£41.69
ex VAT£50.03
inc. VAT
In stock
Price Break
10+
£37.10
19+
£35.02
29+
£34.60
39+
£34.19
49+
£33.77
74+
£33.35
99+
£31.27
199+
£30.85
249+
£30.43
499+
£30.02
999+
£29.18
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCHA
Technical
Technical
| d | 50mm |
|---|---|
| h | 83mm |
| w | 142mm |
| b | 118mm |
| c | 5mm |
| a | 48mm |
| s | G1 |
| l | 21mm |
| B | 51.6mm |
| n | 19mm |
| Bearing no | UC210 |
| Housing no | HA210 |
| Weight | 2.04 kg |
