SKU: UCHA209

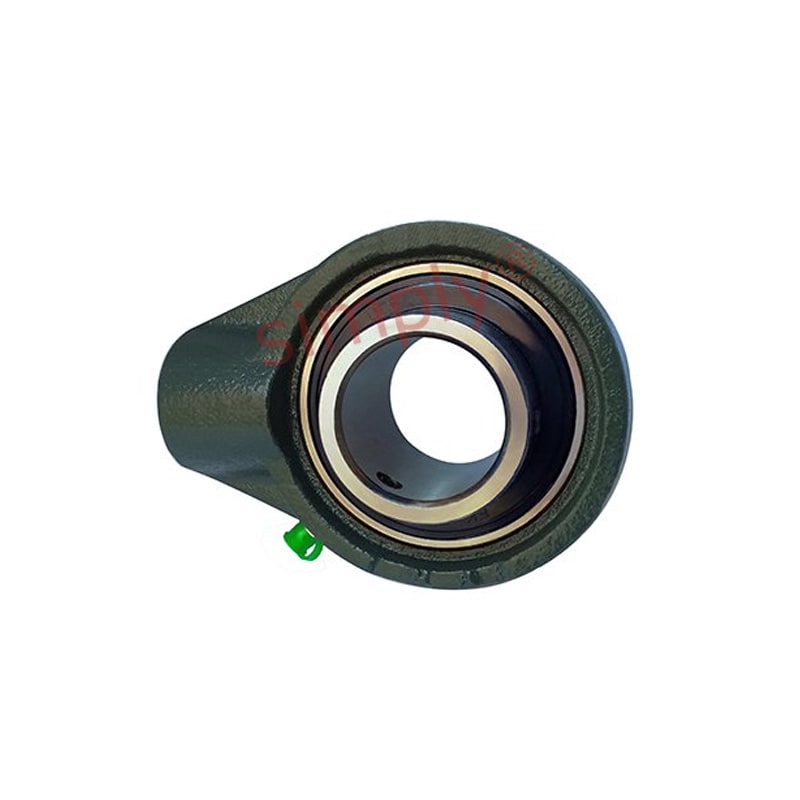

UCHA209 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert
UCHA209 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert
Regular price
£36.00
ex VAT£43.20inc. VAT
Regular price
Sale price
£36.00
ex VAT£43.20
inc. VAT
In stock
Price Break
3+
£32.04
4+
£30.24
9+
£29.88
19+
£29.52
49+
£29.16
99+
£28.80
499+
£27.00
999+
£26.64
1999+
£26.28
2999+
£25.92
4999+
£25.20
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCHA
Technical
Technical
| d | 45mm |
|---|---|
| h | 82mm |
| w | 136mm |
| b | 108mm |
| c | 5mm |
| a | 48mm |
| s | G1 |
| l | 21mm |
| B | 49.2mm |
| n | 19mm |
| Bearing no | UC209 |
| Housing no | HA209 |
| Weight | 1.714 kg |
