SKU: UCHA207-22

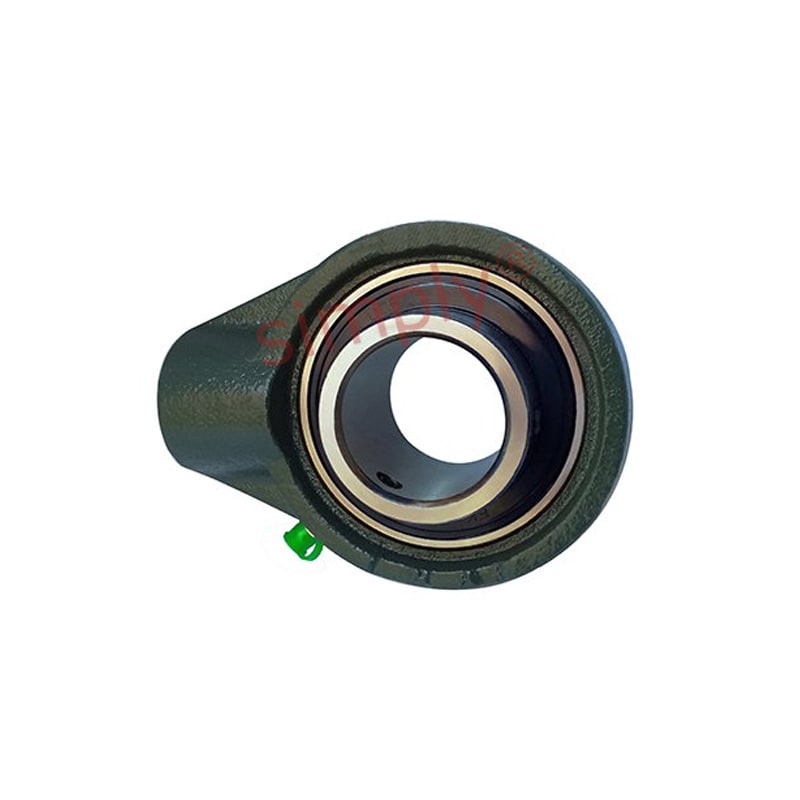

UCHA207-22 Imperial Cast Iron Hanger Bearing Unit with 1-3/8 inch Bore Insert
UCHA207-22 Imperial Cast Iron Hanger Bearing Unit with 1-3/8 inch Bore Insert
Regular price
£24.78
ex VAT£29.74inc. VAT
Regular price
Sale price
£24.78
ex VAT£29.74
inc. VAT
In stock
Price Break
3+
£22.06
4+
£20.82
9+
£20.57
19+
£20.32
49+
£20.07
99+
£19.83
499+
£18.59
999+
£18.34
1999+
£18.09
2999+
£17.84
4999+
£17.35
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UCHA
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| h | 2-3/4 inch |
| w | 4-9/16 inch |
| b | 3-5/8 inch |
| c | 0 inch |
| a | 1-37/64 inch |
| s | G-3/4 |
| l | 3/4 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bearing no | UC207-22 |
| Housing no | HA207 |
| Weight | 1.104 kg |
