SKU: UCHA207

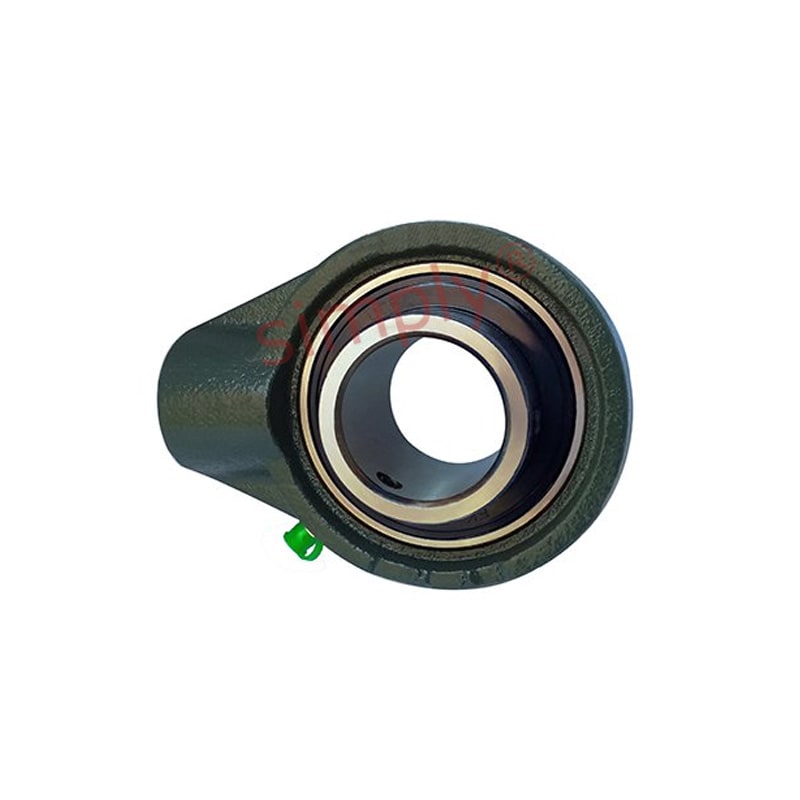

UCHA207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert
UCHA207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert
Regular price
£15.29
ex VAT£18.35inc. VAT
Regular price
Sale price
£15.29
ex VAT£18.35
inc. VAT
In stock
Price Break
3+
£13.61
4+
£12.84
9+
£12.69
19+
£12.54
49+
£12.38
99+
£12.23
499+
£11.47
999+
£11.31
1999+
£11.16
2999+
£11.01
4999+
£10.70
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCHA
Technical
Technical
| d | 35mm |
|---|---|
| h | 70mm |
| w | 116mm |
| b | 92mm |
| c | 0mm |
| a | 40mm |
| s | G-3/4 |
| l | 19mm |
| B | 42.9mm |
| n | 17.5mm |
| Bearing no | UC207 |
| Housing no | HA207 |
| Weight | 1.099 kg |
