SKU: UCHA205-15

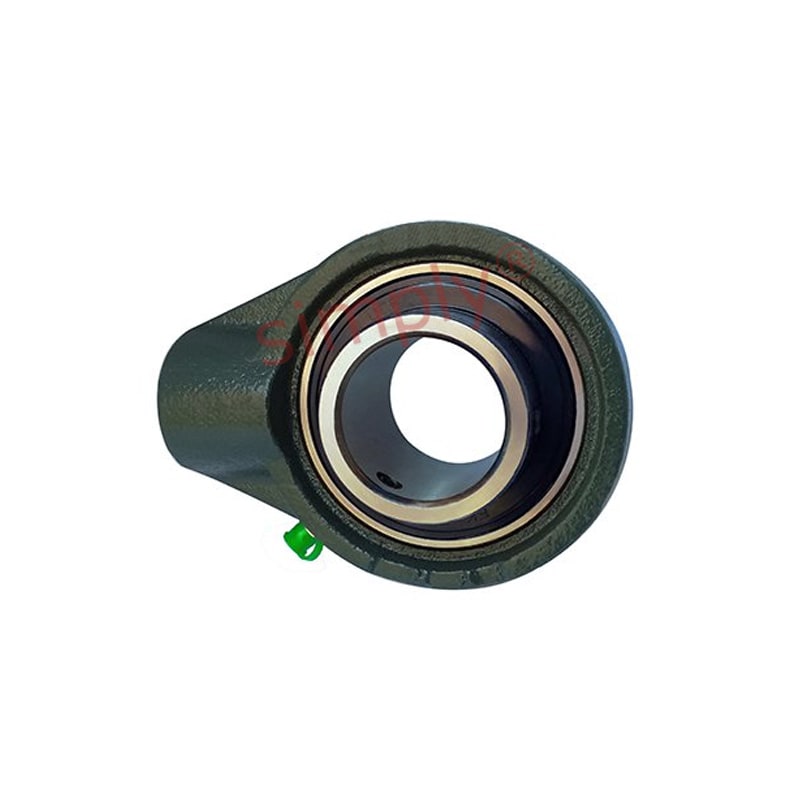

UCHA205-15 Imperial Cast Iron Hanger Bearing Unit with 15/16 inch Bore Insert
UCHA205-15 Imperial Cast Iron Hanger Bearing Unit with 15/16 inch Bore Insert
Regular price
£14.69
ex VAT£17.63inc. VAT
Regular price
Sale price
£14.69
ex VAT£17.63
inc. VAT
In stock
Price Break
3+
£13.07
4+
£12.34
9+
£12.19
19+
£12.04
49+
£11.90
99+
£11.75
499+
£11.02
999+
£10.87
1999+
£10.72
2999+
£10.58
4999+
£10.28
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- UCHA
Technical
Technical
| d | 15/16 inch |
|---|---|
| h | 2-33/64 inch |
| w | 4-1/16 inch |
| b | 3-5/64 inch |
| c | 0 inch |
| a | 1-37/64 inch |
| s | G-3/4 |
| l | 3/4 inch |
| B | 1.3425 inch |
| n | 0.563 inch |
| Bearing no | UC205-15 |
| Housing no | HA205 |
| Weight | 0.801 kg |
