SKU: UCHA201-8

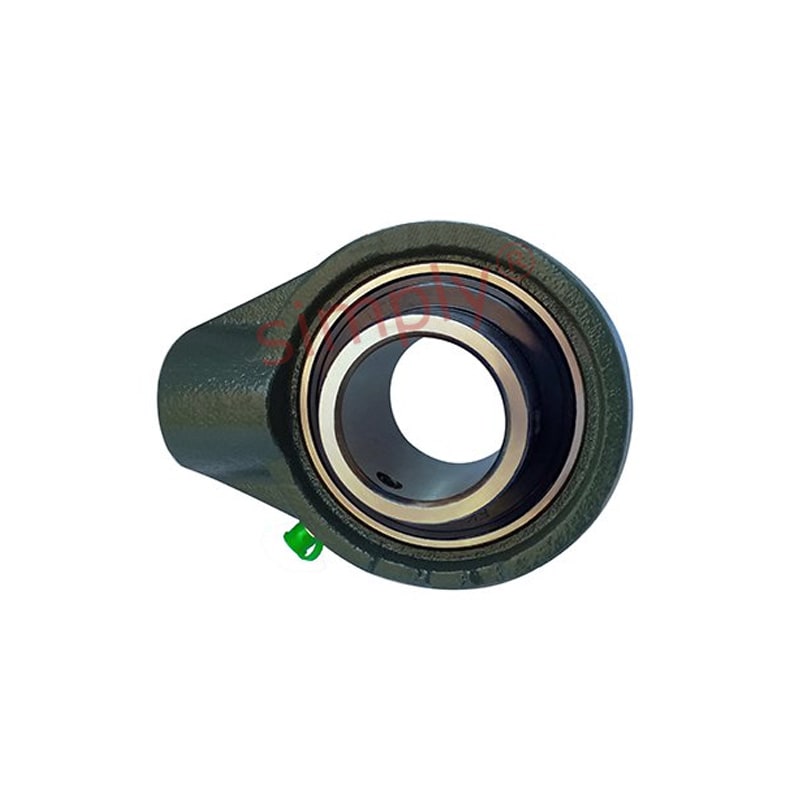

UCHA201-8 Imperial Cast Iron Hanger Bearing Unit with 1/2 inch Bore Insert
UCHA201-8 Imperial Cast Iron Hanger Bearing Unit with 1/2 inch Bore Insert
Regular price
£13.93
ex VAT£16.72inc. VAT
Regular price
Sale price
£13.93
ex VAT£16.72
inc. VAT
In stock
Price Break
3+
£12.40
4+
£11.70
9+
£11.56
19+
£11.42
49+
£11.29
99+
£11.15
499+
£10.45
999+
£10.31
1999+
£10.17
2999+
£10.03
4999+
£9.75
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- UCHA
Technical
Technical
| d | 1/2 inch |
|---|---|
| h | 2-33/64 inch |
| w | 3-25/32 inch |
| b | 2-33/64 inch |
| c | 0 inch |
| a | 1-37/64 inch |
| s | G-3/4 |
| l | 3/4 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bearing no | UC201-8 |
| Housing no | HA201 |
| Weight | 0.627 kg |
