SKU: UCHA201

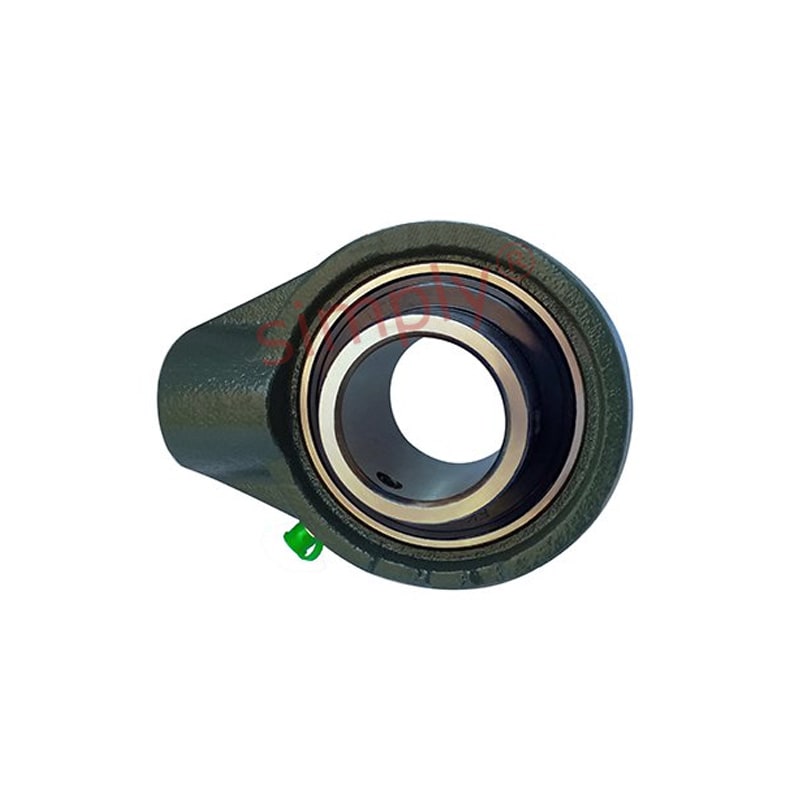

UCHA201 Metric Cast Iron Hanger Bearing Unit with 12mm Bore Insert
UCHA201 Metric Cast Iron Hanger Bearing Unit with 12mm Bore Insert
Regular price
£8.00
ex VAT£9.60inc. VAT
Regular price
Sale price
£8.00
ex VAT£9.60
inc. VAT
In stock
Price Break
3+
£7.12
4+
£6.72
9+
£6.64
19+
£6.56
49+
£6.48
99+
£6.40
499+
£6.00
999+
£5.92
1999+
£5.84
2999+
£5.76
4999+
£5.60
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- UCHA
Technical
Technical
| d | 12mm |
|---|---|
| h | 64mm |
| w | 96mm |
| b | 64mm |
| c | 0mm |
| a | 40mm |
| s | G-3/4 |
| l | 19mm |
| B | 31mm |
| n | 12.7mm |
| Bearing no | UC201 |
| Housing no | HA201 |
| Weight | 0.637 kg |
