SKU: UCFS326D1-NTN

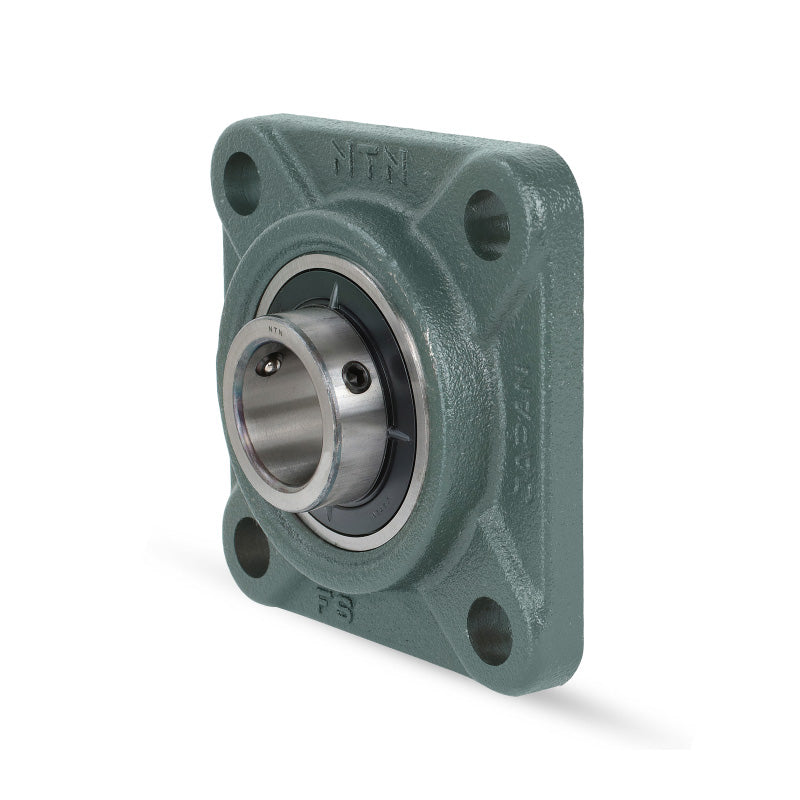

NTN UCFS326D1 Metric Four Bolt Square Cast Iron Flange Housing with 130mm Bore Insert - Allow 2-3 Days
NTN UCFS326D1 Metric Four Bolt Square Cast Iron Flange Housing with 130mm Bore Insert - Allow 2-3 Days
Regular price
£960.61
ex VAT£1,152.73inc. VAT
Regular price
Sale price
£960.61
ex VAT£1,152.73
inc. VAT
In stock
Price Break
10+
£854.94
19+
£806.91
29+
£797.31
39+
£787.70
49+
£778.09
74+
£768.49
99+
£720.46
199+
£710.85
249+
£701.25
499+
£691.64
999+
£672.43
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Style:
- UCFS
- Bolt Hole Centres:
- 320mm
Technical
Technical
| Shaft diameter | 130mm |
|---|---|
| L | 410mm |
| J | 320mm |
| A<sub>2</sub> | 35mm |
| N | 41mm |
| A<sub>3</sub> | 30mm |
| A<sub>1</sub> | 45mm |
| A | 115mm |
| H<sub>3</sub> | 360mm |
| A<sub>0</sub> | 146mm |
| B | 135mm |
| S | 54mm |
| Fixing bolt | M36 |
| Mass | 69 kg |
