SKU: UCFLX.09-26

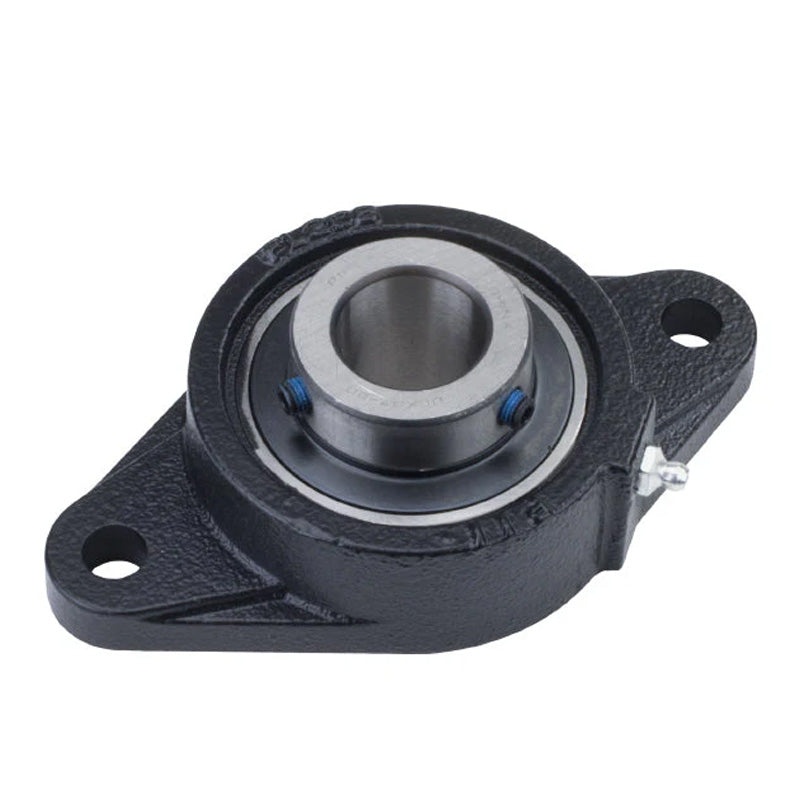

UCFLX09-26 Imperial Two Bolt Oval Cast Iron Housing with 1-5/8 inch Bore Insert
UCFLX09-26 Imperial Two Bolt Oval Cast Iron Housing with 1-5/8 inch Bore Insert
Regular price
£8.31
ex VAT£9.97inc. VAT
Regular price
Sale price
£8.31
ex VAT£9.97
inc. VAT
Equivalent to: MSFT1-5/8
In stock
Price Break
3+
£7.40
4+
£6.98
9+
£6.90
19+
£6.81
49+
£6.73
99+
£6.65
499+
£6.23
999+
£6.15
1999+
£6.07
2999+
£5.98
4999+
£5.82
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT1-5/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 157.16mm = 6.187 (6-3/16) inch
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| a | 189mm = 7-7/16 inch |
| e | 157mm = 6-3/16 inch |
| i | 157mm = 6-3/16 inch |
| g | 16mm = 5/8 inch |
| l | 40mm = 1-9/16 inch |
| s | 16mm = 5/8 inch |
| b | 116mm = 4-9/16 inch |
| z | 55.6mm = 2-3/16 inch |
| Bi | 51.6mm = 2.0315 inch |
| n | 19mm = 0.748 inch |
| Bolt | 14mm = 1/2 inch |
| Weight | 2.4 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
