SKU: UCFLX.08-24

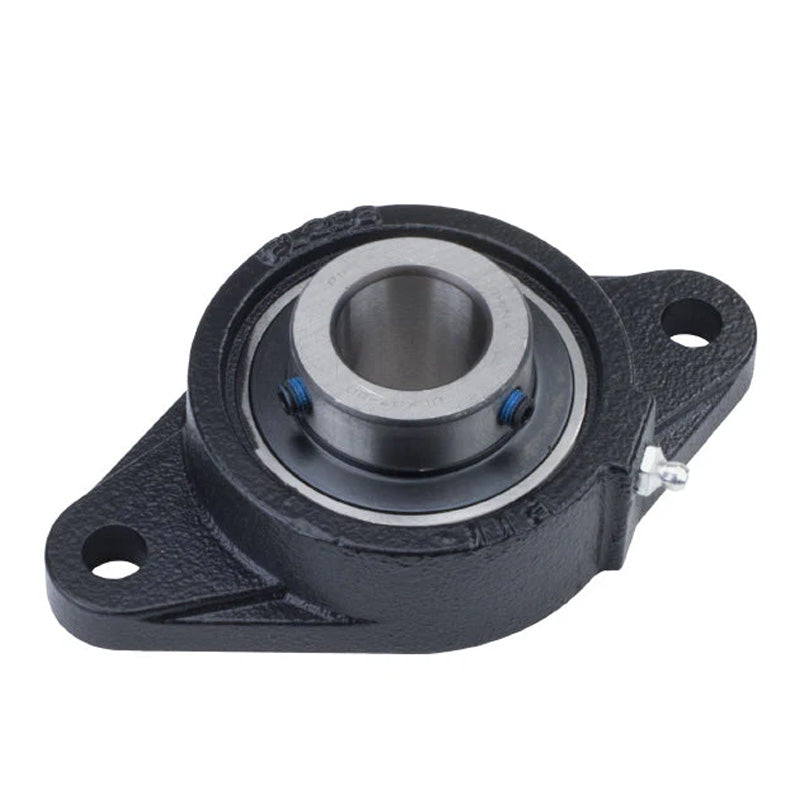

UCFLX08-24 Imperial Two Bolt Oval Cast Iron Housing with 1-1/2 inch Bore Insert
UCFLX08-24 Imperial Two Bolt Oval Cast Iron Housing with 1-1/2 inch Bore Insert
Regular price
£23.37
ex VAT£28.04inc. VAT
Regular price
Sale price
£23.37
ex VAT£28.04
inc. VAT
In stock
Price Break
3+
£20.80
4+
£19.63
9+
£19.40
19+
£19.16
49+
£18.93
99+
£18.70
499+
£17.53
999+
£17.29
1999+
£17.06
2999+
£16.83
4999+
£16.36
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 148.03mm = 5.828 (5-53/64) inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| a | 179mm = 7-1/16 inch |
| e | 148mm = 5-53/64 inch |
| i | 148mm = 5-53/64 inch |
| g | 16mm = 5/8 inch |
| l | 40mm = 1-9/16 inch |
| s | 16mm = 5/8 inch |
| b | 111mm = 4-3/8 inch |
| z | 52.2mm = 2-1/16 inch |
| Bi | 49.2mm = 1.937 inch |
| n | 19mm = 0.748 inch |
| Bolt | 14mm = 1/2 inch |
| Weight | 2 kg |
| Dynamic load | 2650 kgf |
| Static load | 1910 kgf |
