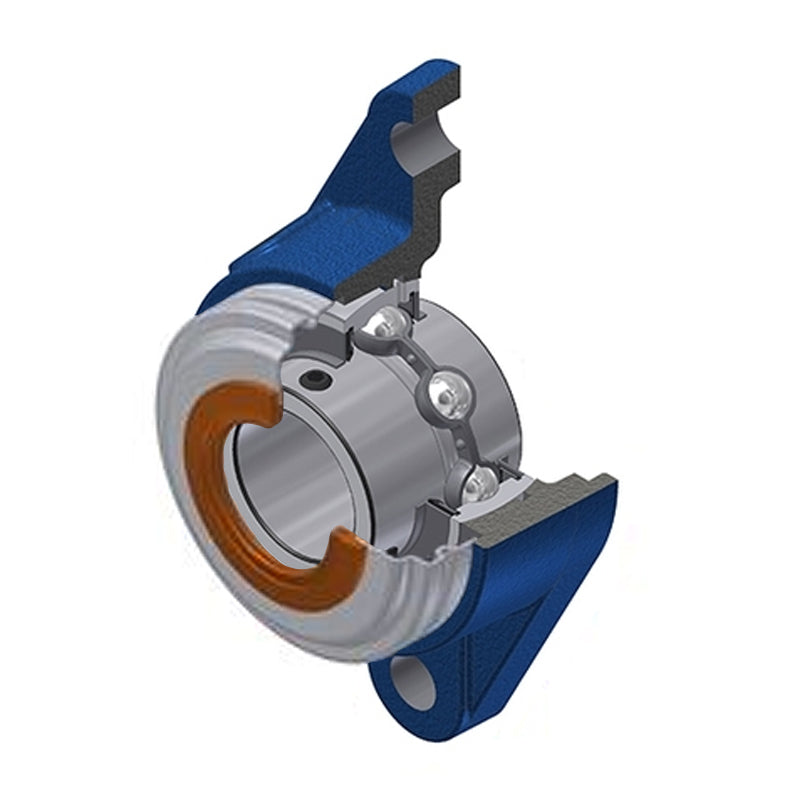

SNR UCFLE209CO Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UCFLE209CO Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
£99.72
ex VAT£119.66inc. VAT
Regular price
Sale price
£99.72
ex VAT£119.66
inc. VAT
In stock
Price Break
3+
£98.72
4+
£94.73
9+
£92.74
19+
£89.75
49+
£87.75
99+
£82.77
499+
£69.80
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFLE
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 37.5mm |
| A1 | 13mm |
| A2 | 54.2mm |
| B | 49.2mm |
| e | 24mm |
| H | 180mm |
| J | 148.5mm |
| L | 111mm |
| N | 14mm |
| S | 19mm |
| Dz | 95mm |
| Z | 57.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.859 kg |
