SKU: UCFLE205-15CC-SNR

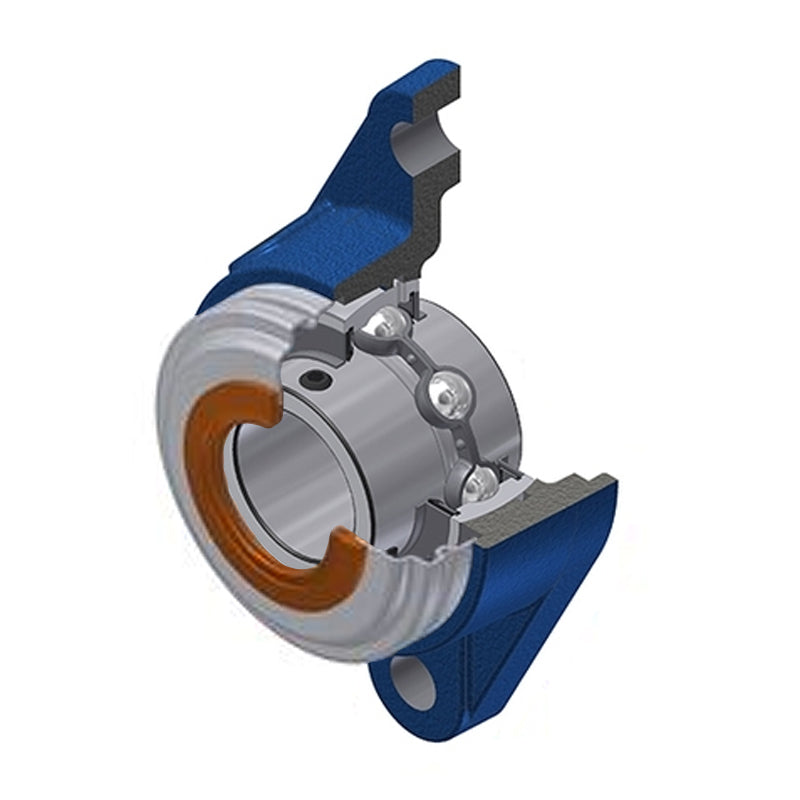

SNR UCFLE205-15CC Imperial Two Bolt Oval Cast Iron Flange Housing with 15/16 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCFLE205-15CC Imperial Two Bolt Oval Cast Iron Flange Housing with 15/16 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
£55.40
ex VAT£66.48inc. VAT
Regular price
Sale price
£55.40
ex VAT£66.48
inc. VAT
In stock
Price Break
3+
£54.85
4+
£52.63
9+
£51.52
19+
£49.86
49+
£48.75
99+
£45.98
499+
£38.78
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 15/16 inch |
| A | 29.3mm |
| A1 | 11mm |
| A2 | 38.7mm |
| B | 34mm |
| e | 19mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| S | 14.3mm |
| Dz | 60mm |
| Z | 42mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.61 kg |
