SKU: UCFLE201CO-SNR

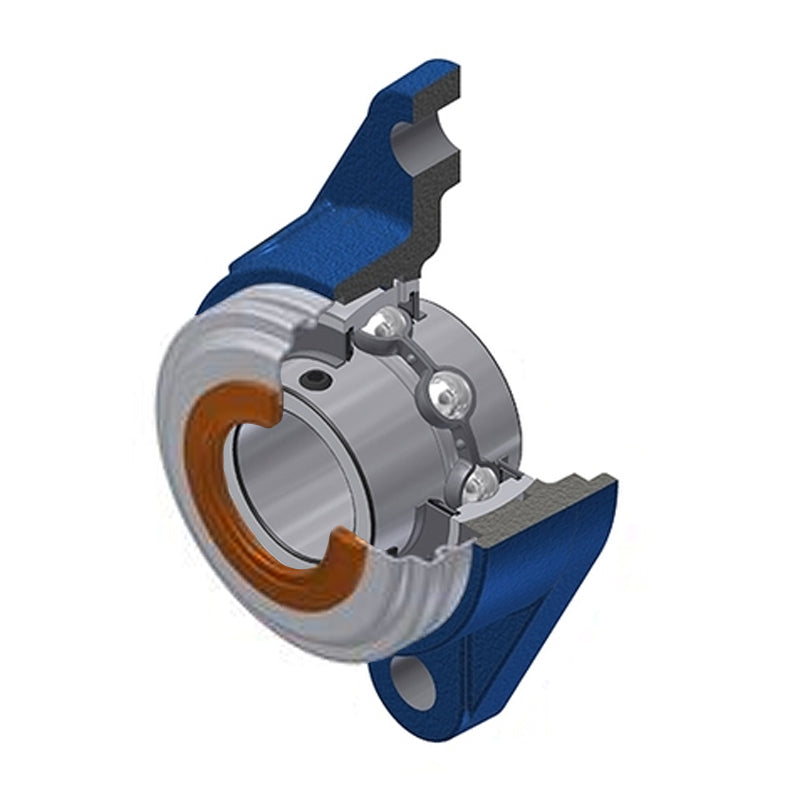

SNR UCFLE201CO Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UCFLE201CO Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
£55.39
ex VAT£66.47inc. VAT
Regular price
Sale price
£55.39
ex VAT£66.47
inc. VAT
In stock
Price Break
3+
£54.84
4+
£52.62
9+
£51.51
19+
£49.85
49+
£48.74
99+
£45.97
499+
£38.77
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- UCFLE
- Bolt Hole Centres:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 12mm |
| A | 30.3mm |
| A1 | 10mm |
| A2 | 37.3mm |
| B | 31mm |
| e | 19mm |
| H | 112mm |
| J | 90mm |
| L | 61mm |
| N | 11.5mm |
| S | 12.7mm |
| Dz | 54mm |
| Z | 41.6mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.54 kg |
