SKU: UCFL307

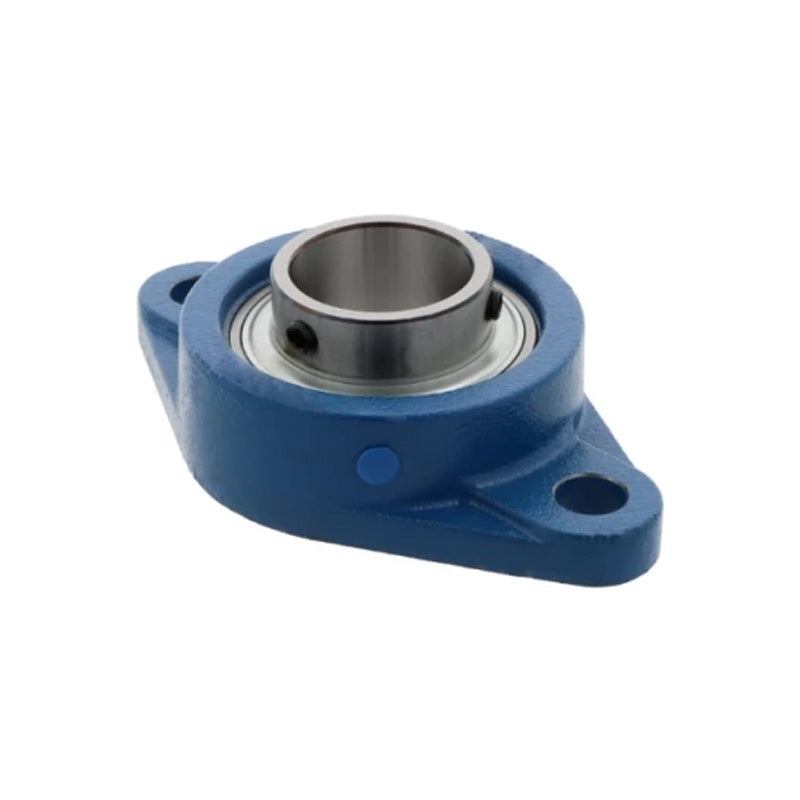

UCFL307 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 35mm Bore
UCFL307 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 35mm Bore
Regular price
£32.12
ex VAT£38.54inc. VAT
Regular price
Sale price
£32.12
ex VAT£38.54
inc. VAT
In stock
Price Break
3+
£28.59
4+
£26.98
9+
£26.66
19+
£26.34
49+
£26.02
99+
£25.70
499+
£24.09
999+
£23.77
1999+
£23.45
2999+
£23.13
4999+
£22.48
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCFL
- Bolt Hole Centres:
- 141mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 185mm |
| e | 141mm |
| i | 20mm |
| g | 16mm |
| l | 36mm |
| s | 23mm |
| b | 100mm |
| z | 49mm |
| B | 48mm |
| n | 19mm |
| Bolt size | M20 |
| Bearing no | UC307 |
| Housing no | FL307 |
| Weight | 1.674 kg |
