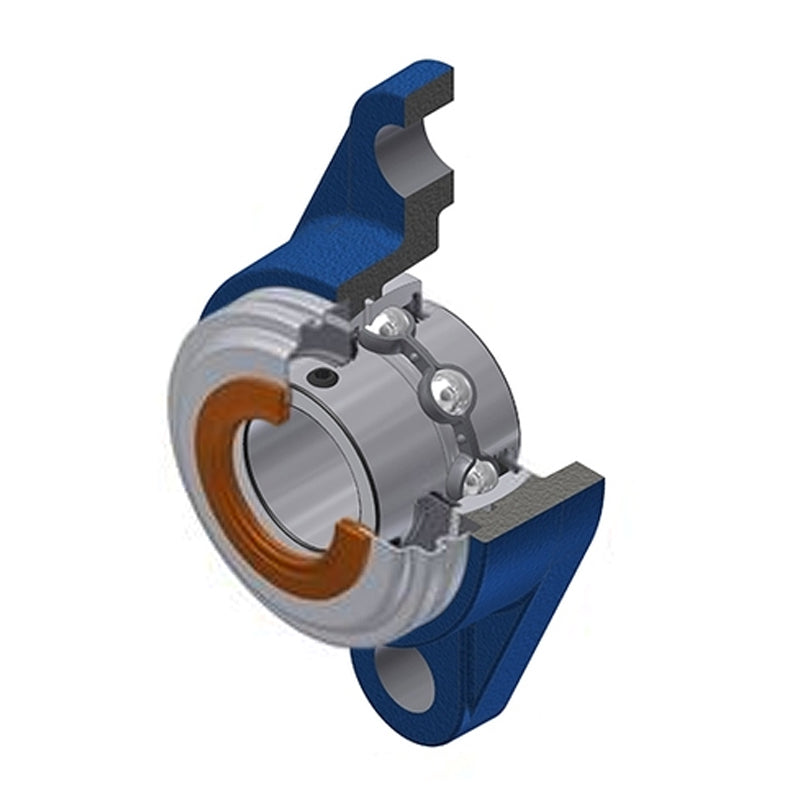

• SNR UCFL207CC Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFL207CC-SNR

SNR UCFL207CC Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFL207CC Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
£55.40 ex VAT£66.48inc. VAT
£55.40 ex VAT£66.48 inc. VAT
Sale Sold out

In stock

Price Break
3+ £54.85
4+ £52.63
9+ £51.52
19+ £49.86
49+ £48.75
99+ £45.98
499+ £38.78
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UCFL
Bolt Hole Centres:
130mm
Technical

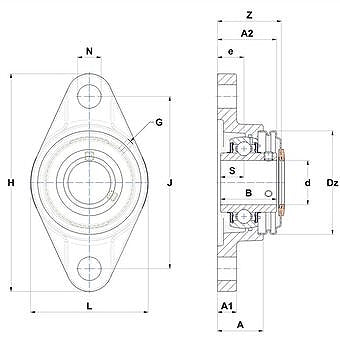

--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 14mm
A2 44.4mm
B 42.9mm
e 19mm
H 161mm
J 130mm
L 90mm
N 16mm
S 17.5mm
Dz 80mm
Z 48.7mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.202 kg
