SKU: UCFL205NL3-SNR

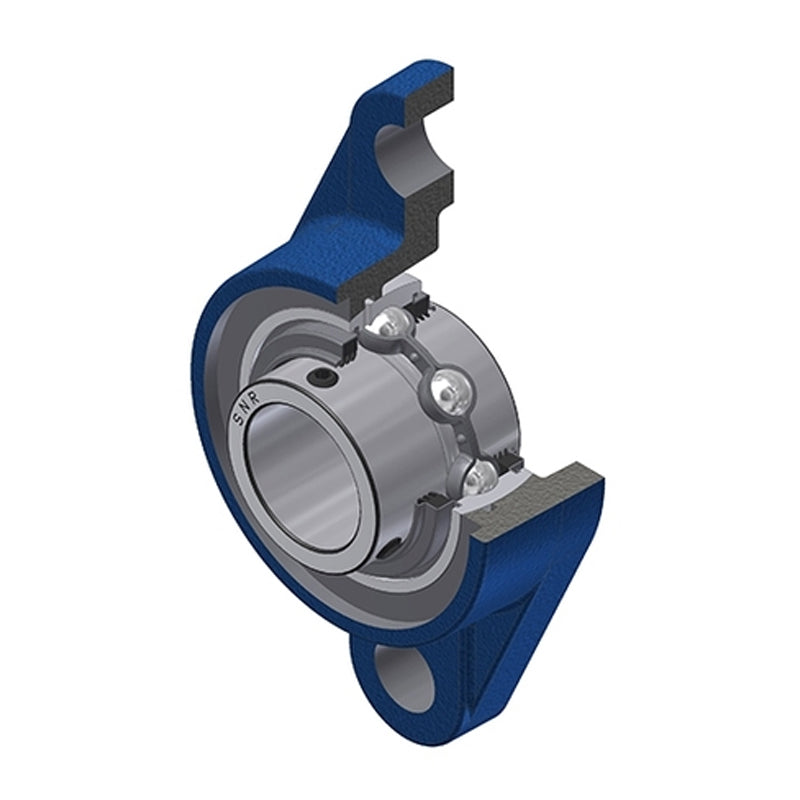

SNR UCFL205NL3 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCFL205NL3 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
£35.45
ex VAT£42.54inc. VAT
Regular price
Sale price
£35.45
ex VAT£42.54
inc. VAT
In stock
Price Break
3+
£35.10
4+
£33.68
9+
£32.97
19+
£31.91
49+
£31.20
99+
£29.42
499+
£24.82
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical

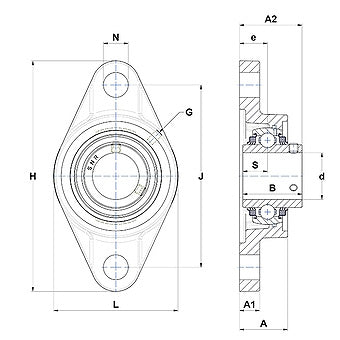

| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 27mm |
| A1 | 13mm |
| A2 | 35.7mm |
| B | 34mm |
| e | 16mm |
| H | 130mm |
| J | 90mm |
| L | 68mm |
| N | 16mm |
| S | 14.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.61 kg |
