SKU: UCFEX12-SNR

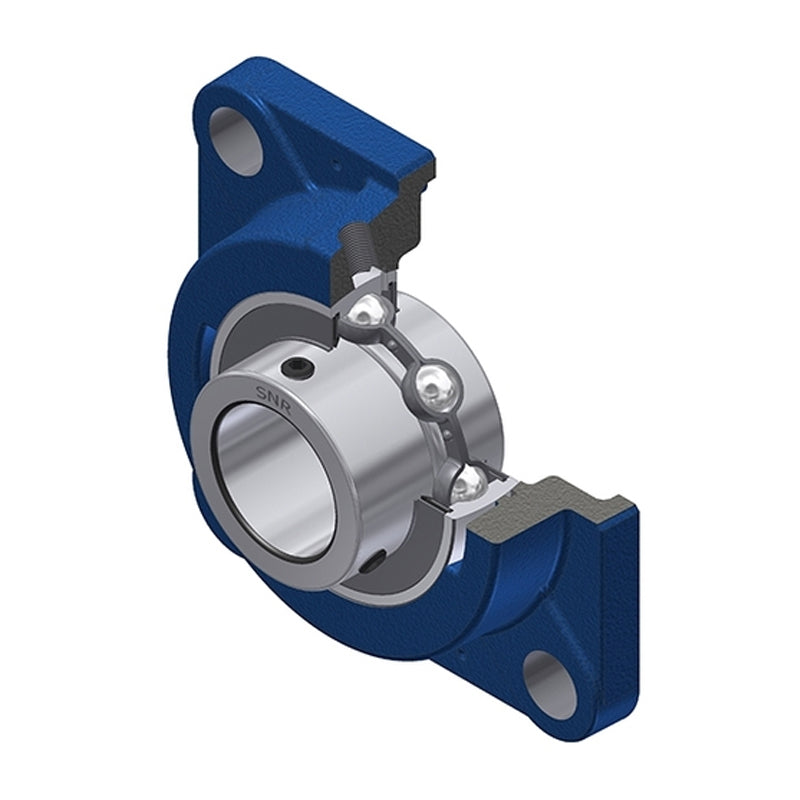

SNR UCFEX12 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
SNR UCFEX12 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price
£99.73
ex VAT£119.68inc. VAT
Regular price
Sale price
£99.73
ex VAT£119.68
inc. VAT
In stock
Price Break
5+
£98.73
10+
£94.74
20+
£92.75
50+
£89.76
100+
£87.76
500+
£82.78
1000+
£69.81
Couldn't load pickup availability
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFEX
- Bolt Hole Centres:
- 149.22mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 47.8mm |
| A1 | 18mm |
| A2 | 77.2mm |
| B | 74.6mm |
| e | 32.8mm |
| J | 149.22mm |
| L | 187.6mm |
| N | 18mm |
| S | 30.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 6.27 kg |
