SKU: UCFE213-40-SNR

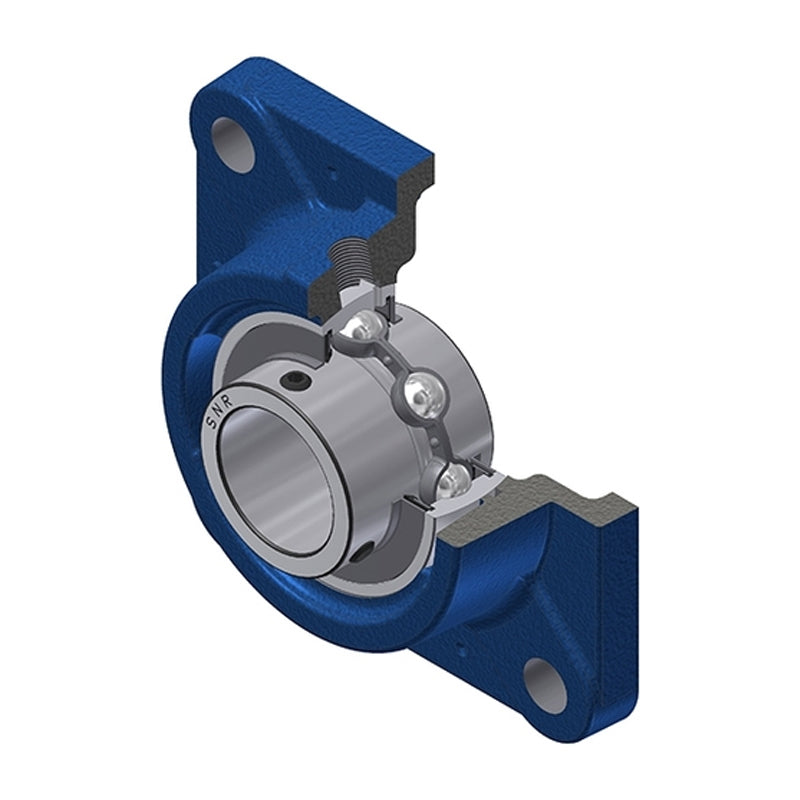

SNR UCFE213-40 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
SNR UCFE213-40 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
£80.33
ex VAT£96.40inc. VAT
Regular price
Sale price
£80.33
ex VAT£96.40
inc. VAT
In stock
Price Break
10+
£71.49
19+
£67.48
29+
£66.67
39+
£65.87
49+
£65.07
74+
£64.26
99+
£60.25
199+
£59.44
249+
£58.64
499+
£57.84
999+
£56.23
Couldn't load pickup availability
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCFE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-1/2 inch |
| A | 56mm |
| A1 | 18mm |
| A2 | 77.7mm |
| B | 65.1mm |
| e | 38mm |
| J | 150mm |
| L | 188mm |
| N | 18mm |
| S | 25.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 6.42 kg |
