SKU: UCFE210T20-SNR

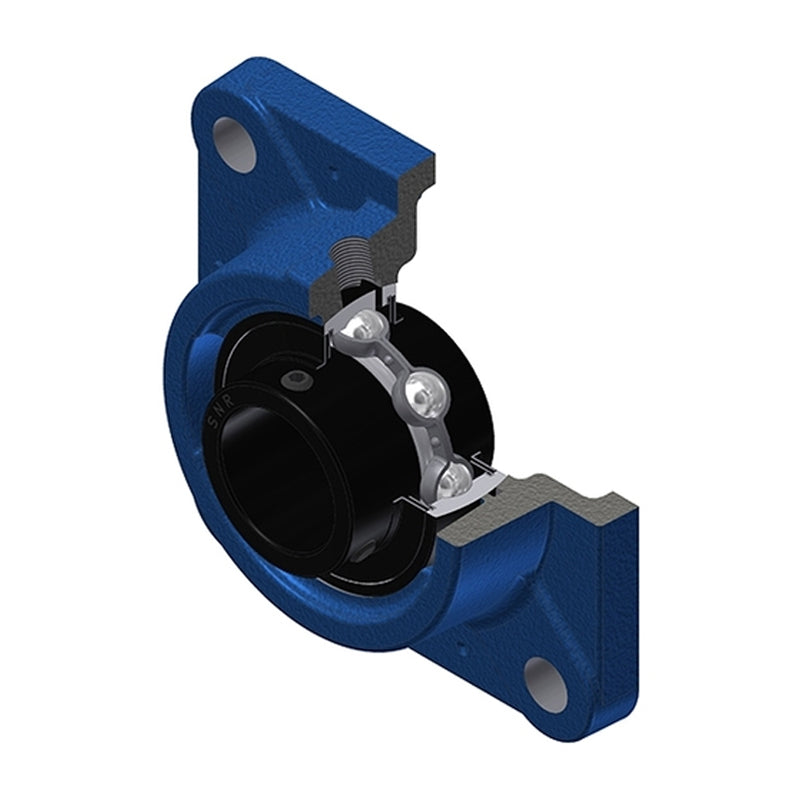

SNR UCFE210T20 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCFE210T20 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price £177.27 ex VAT£212.72inc. VAT
Regular price Sale price £177.27 ex VAT£212.72 inc. VAT
Sale Sold out

In stock

Price Break
3+ £175.50
4+ £168.41
9+ £164.86
19+ £159.54
49+ £156.00
99+ £147.13
499+ £124.09
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 44mm
A1 13mm
A2 60.6mm
B 51.6mm
e 28mm
J 111mm
L 143mm
N 18mm
S 19mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 22 Nm
Mass 2.56 kg
