SKU: UCFE208T20-SNR

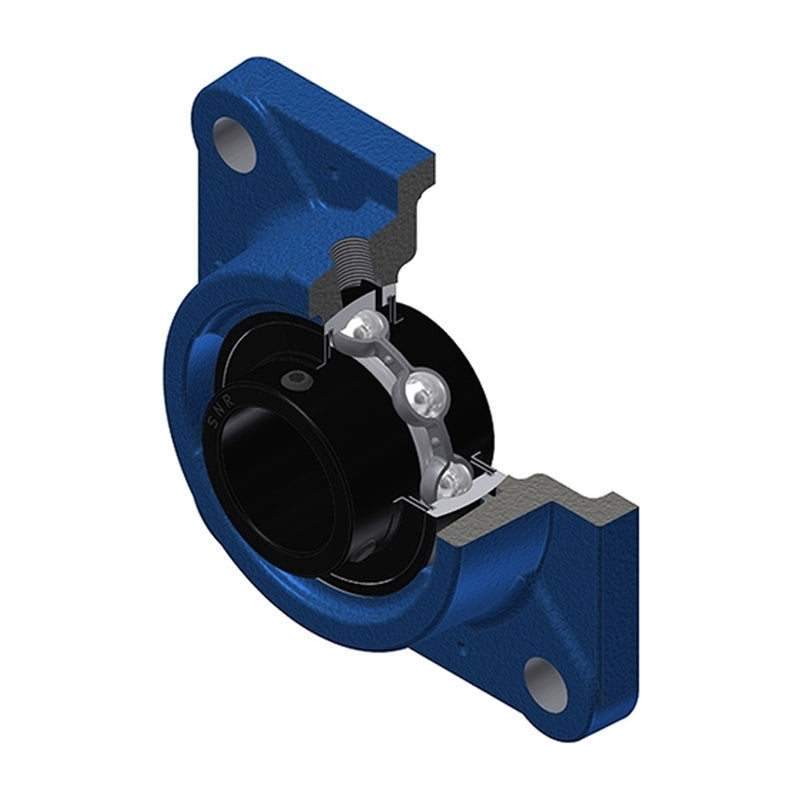

SNR UCFE208T20 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFE208T20 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
£68.92
ex VAT£82.70inc. VAT
Regular price
Sale price
£68.92
ex VAT£82.70
inc. VAT
In stock
Price Break
10+
£61.34
19+
£57.89
29+
£57.20
39+
£56.51
49+
£55.83
74+
£55.14
99+
£51.69
199+
£51.00
249+
£50.31
499+
£49.62
999+
£48.24
Couldn't load pickup availability
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFE
- Bolt Hole Centres:
- 101.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 39.5mm |
| A1 | 13mm |
| A2 | 54.2mm |
| B | 49.2mm |
| e | 24mm |
| J | 101.5mm |
| L | 130mm |
| N | 14mm |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.05 kg |
