SKU: UCFCX11-35

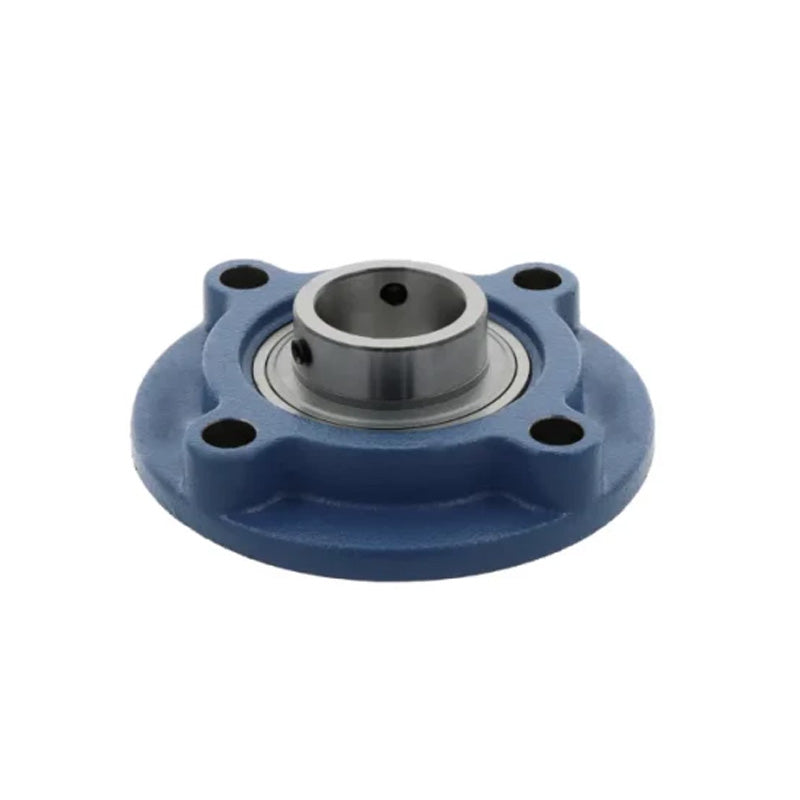

UCFCX11-35 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/16 inch Insert
UCFCX11-35 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/16 inch Insert
Regular price
£59.55
ex VAT£71.46inc. VAT
Regular price
Sale price
£59.55
ex VAT£71.46
inc. VAT
In stock
Price Break
3+
£53.00
4+
£50.02
9+
£49.42
19+
£48.83
49+
£48.23
99+
£47.64
499+
£44.66
999+
£44.07
1999+
£43.47
2999+
£42.87
4999+
£41.68
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCFCX
- Pitch Circle Diameter:
- 107.55mm = 4.234 (4-15/64) inch
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| a | 7-3/32 inch |
| p | 5-63/64 inch |
| (e) | 4-15/64 inch |
| i | 5/32 inch |
| s | 5/8 inch |
| j | 55/64 inch |
| k | 1/2 inch |
| g | 1-1/32 inch |
| f | 5 inch |
| z | 1-23/32 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bolt size | 1/2 inch |
| Bearing no | UCX11-35 |
| Housing no | FCX11 |
| Weight | 3.8 kg |
