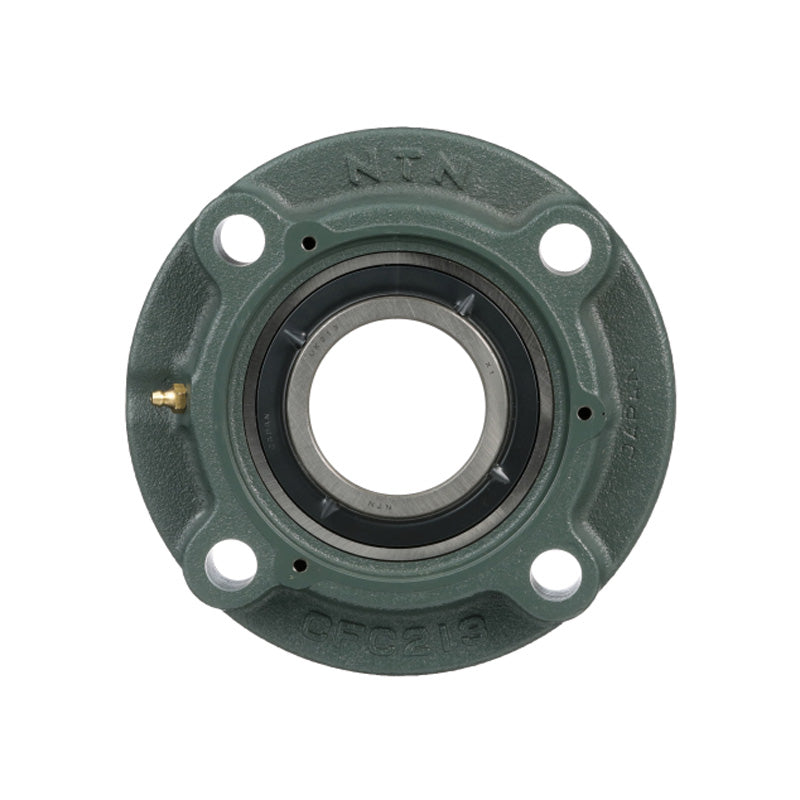

NTN UCFCX09D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
NTN UCFCX09D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
Regular price
£53.61
ex VAT£64.33inc. VAT
Regular price
Sale price
£53.61
ex VAT£64.33
inc. VAT
In stock
Price Break
10+
£47.71
19+
£45.03
29+
£44.50
39+
£43.96
49+
£43.42
74+
£42.89
99+
£40.21
199+
£39.67
249+
£39.14
499+
£38.60
999+
£37.53
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 91.9mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| L | 155mm |
| J | 130mm |
| (J<sub>1</sub>) | 91.9mm |
| A<sub>2</sub> | 8mm |
| N | 14mm |
| A<sub>3</sub> | 12mm |
| A<sub>1</sub> | 25mm |
| A | 37mm |
| H<sub>3</sub> | 108mm |
| A<sub>0</sub> | 52.6mm |
| B | 51.6mm |
| S | 19mm |
| F (Min.) | 68mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 2.6 kg |
