SKU: UCFCE210N-SNR

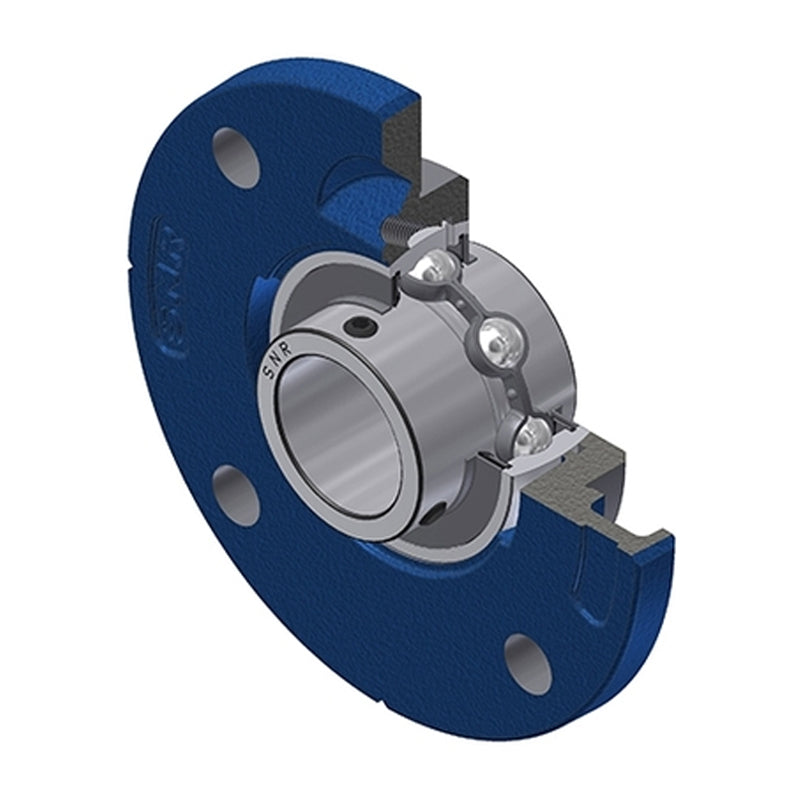

SNR UCFCE210N Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days

SNR UCFCE210N Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
Regular price £66.48 ex VAT£79.78inc. VAT
Regular price Sale price £66.48 ex VAT£79.78 inc. VAT
Sale Sold out

In stock

Price Break
3+ £65.82
4+ £63.16
9+ £61.83
19+ £59.83
49+ £58.50
99+ £55.18
499+ £46.54
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 25.5mm
A1 13mm
A2 31.6mm
A3 3mm
B 51.6mm
e -1mm
H3 110mm
J 135mm
L 165mm
N 14mm
S 19mm
G M8x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.2 kg
