SKU: UCFCE205-SNR

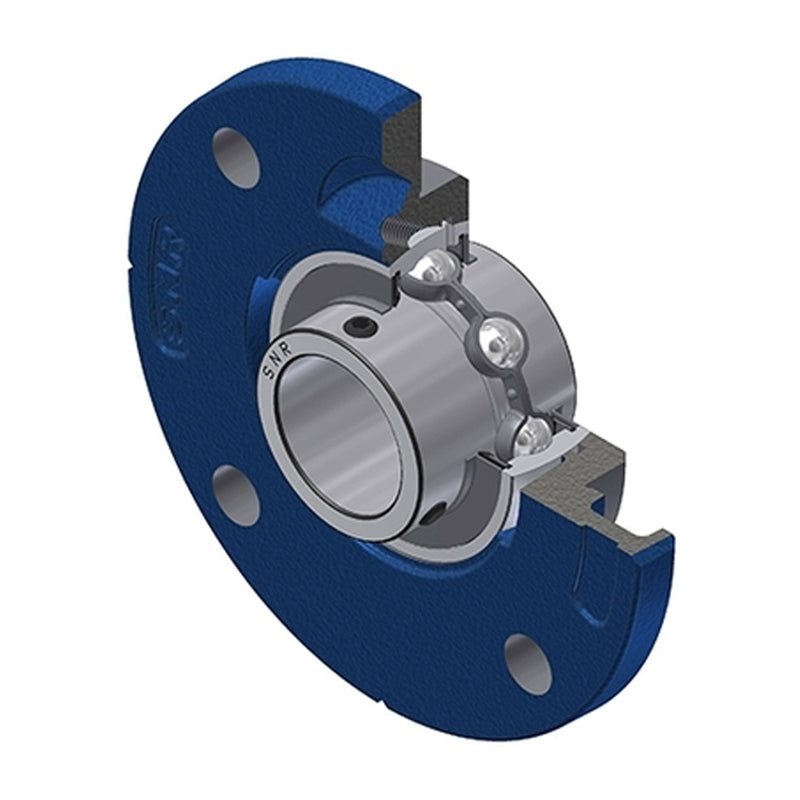

SNR UCFCE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
SNR UCFCE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
Regular price
£25.70
ex VAT£30.84inc. VAT
Regular price
Sale price
£25.70
ex VAT£30.84
inc. VAT
In stock
Price Break
10+
£22.87
19+
£21.59
29+
£21.33
39+
£21.07
49+
£20.82
74+
£20.56
99+
£19.28
199+
£19.02
249+
£18.76
499+
£18.50
999+
£17.99
Couldn't load pickup availability
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 20mm |
| A1 | 9mm |
| A2 | 17.2mm |
| A3 | 2mm |
| B | 34mm |
| e | -2.5mm |
| H3 | 70mm |
| J | 90mm |
| L | 115mm |
| N | 9mm |
| S | 14.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.78 kg |
