SKU: UCFCE204-SNR

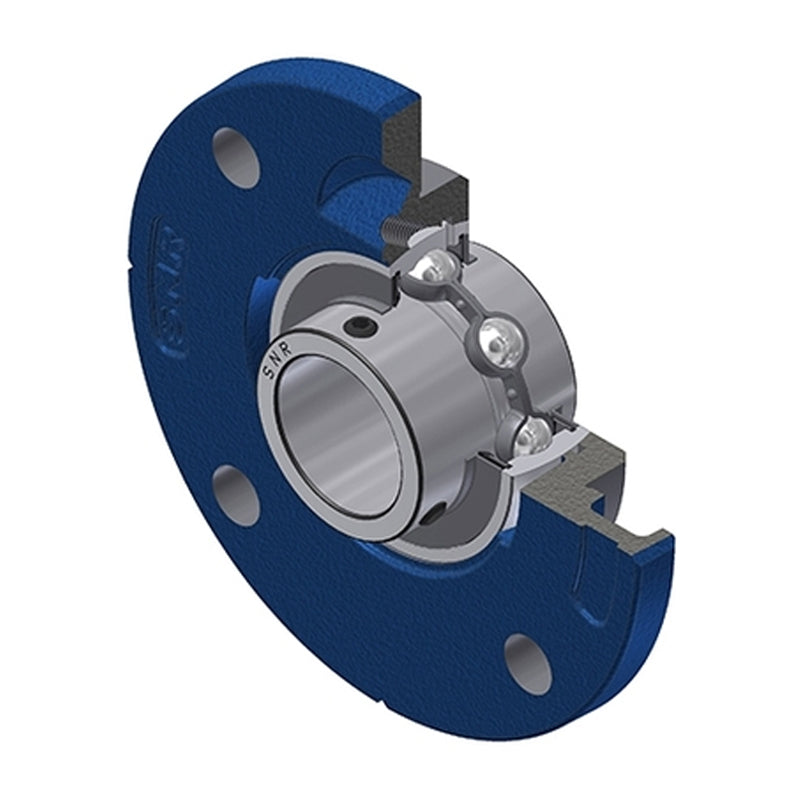

SNR UCFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Insert - Allow 2-3 Days
SNR UCFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Insert - Allow 2-3 Days
Regular price
£22.49
ex VAT£26.99inc. VAT
Regular price
Sale price
£22.49
ex VAT£26.99
inc. VAT
In stock
Price Break
10+
£20.02
19+
£18.89
29+
£18.67
39+
£18.44
49+
£18.22
74+
£17.99
99+
£16.87
199+
£16.64
249+
£16.42
499+
£16.19
999+
£15.74
Couldn't load pickup availability
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 78mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 18mm |
| A1 | 8mm |
| A2 | 16.3mm |
| A3 | 2mm |
| B | 31mm |
| e | -2mm |
| H3 | 62mm |
| J | 78mm |
| L | 100mm |
| N | 9mm |
| S | 12.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.54 kg |
