SKU: UCFC212CO-SNR

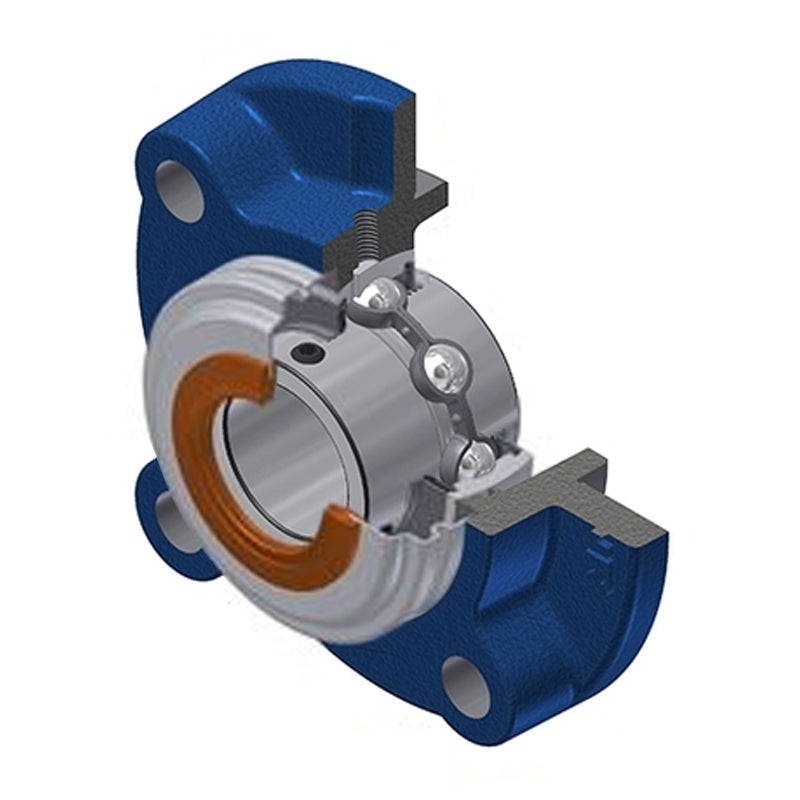

SNR UCFC212CO Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UCFC212CO Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
£81.35
ex VAT£97.62inc. VAT
Regular price
Sale price
£81.35
ex VAT£97.62
inc. VAT
In stock
Price Break
3+
£72.40
4+
£68.33
9+
£67.52
19+
£66.70
49+
£65.89
99+
£65.08
499+
£61.01
999+
£60.20
1999+
£59.38
2999+
£58.57
4999+
£56.94
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 48mm |
| A1 | 15mm |
| A2 | 56.7mm |
| A4 | 36mm |
| B | 65.1mm |
| e | 17mm |
| H3 | 135mm |
| J | 160mm |
| L | 195mm |
| N | 19mm |
| S | 25.4mm |
| Dz | 120mm |
| Z | 73.1mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 5.023 kg |
