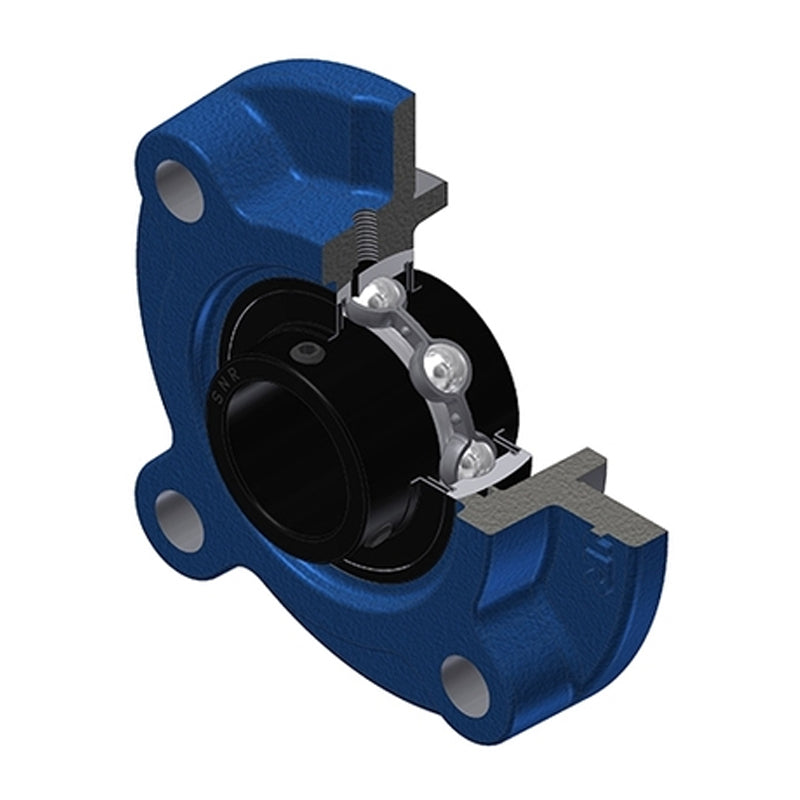

SNR UCFC210T20 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFC210T20 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert Wide Temperature Version - Allow 2-3 Days
Regular price
£155.11
ex VAT£186.13inc. VAT
Regular price
Sale price
£155.11
ex VAT£186.13
inc. VAT
In stock
Price Break
3+
£153.56
4+
£147.35
9+
£144.25
19+
£139.60
49+
£136.50
99+
£128.74
499+
£108.58
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 138mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A1 | 14mm |
| A2 | 42.6mm |
| A4 | 28mm |
| B | 51.6mm |
| e | 10mm |
| H3 | 110mm |
| J | 138mm |
| L | 165mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.84 kg |
