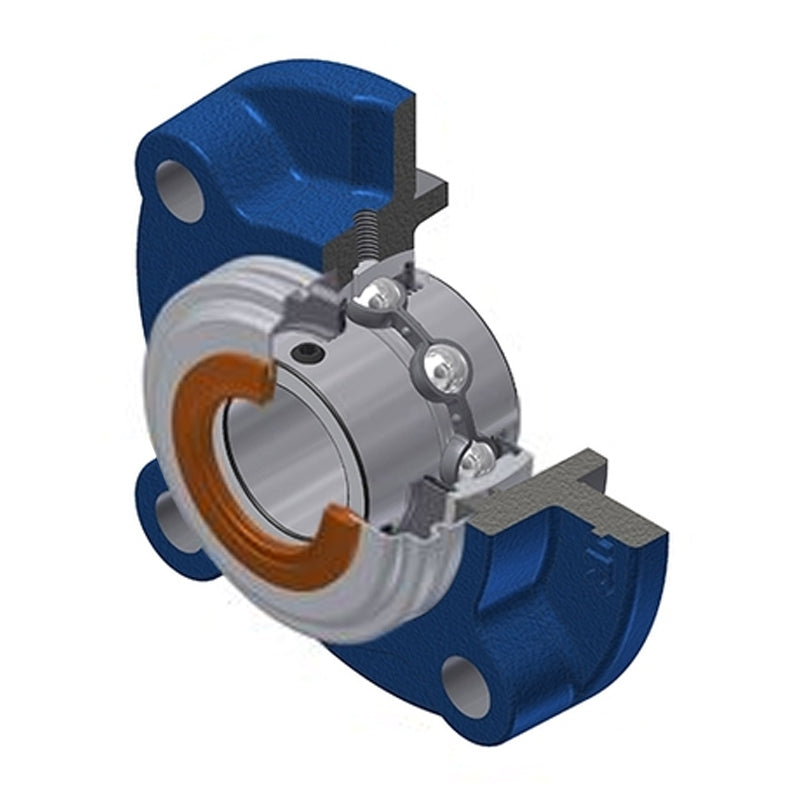

• SNR UCFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: UCFC210CO-SNR

SNR UCFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
£54.78 ex VAT£65.74inc. VAT
£54.78 ex VAT£65.74 inc. VAT
Sale Sold out

In stock

Price Break
3+ £48.76
4+ £46.02
9+ £45.47
19+ £44.92
49+ £44.38
99+ £43.83
499+ £41.09
999+ £40.54
1999+ £39.99
2999+ £39.44
4999+ £38.35
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCFC
Pitch Circle Diameter:
138mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 14mm
A2 42.6mm
A4 28mm
B 51.6mm
e 10mm
H3 110mm
J 138mm
L 165mm
N 16mm
S 19mm
Dz 100mm
Z 59.8mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.897 kg
