• SNR UCFC210CC Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFC210CC-SNR

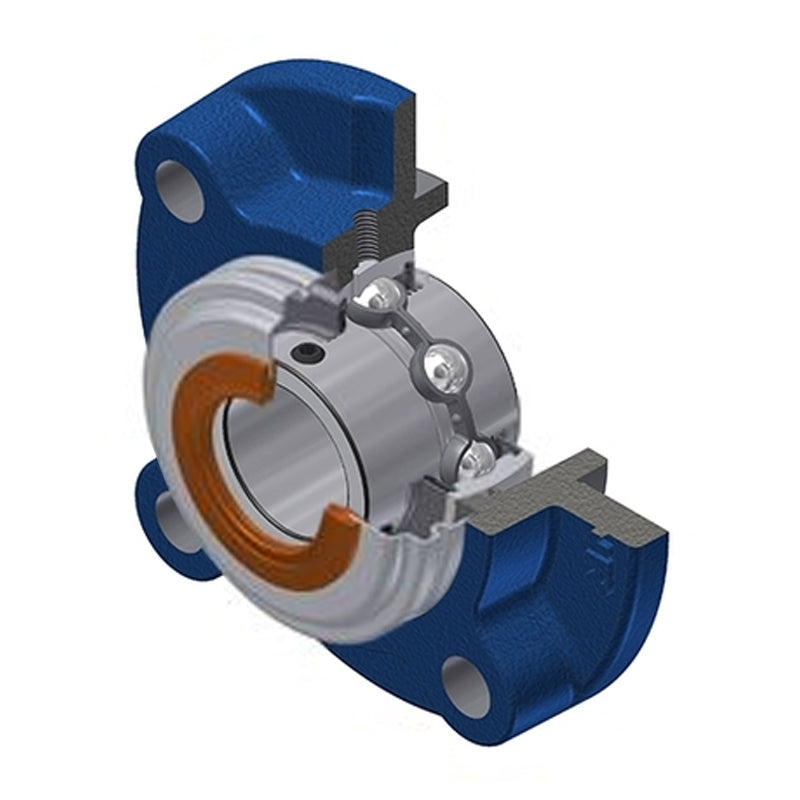

SNR UCFC210CC Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFC210CC Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
£77.53 ex VAT£93.04inc. VAT
£77.53 ex VAT£93.04 inc. VAT
Sale Sold out

In stock

Price Break
3+ £76.75
4+ £73.65
9+ £72.10
19+ £69.78
49+ £68.23
99+ £64.35
499+ £54.27
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCFC
Pitch Circle Diameter:
138mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 14mm
A2 42.6mm
A4 28mm
B 51.6mm
e 10mm
H3 110mm
J 138mm
L 165mm
N 16mm
S 19mm
Dz 100mm
Z 59.8mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.913 kg
