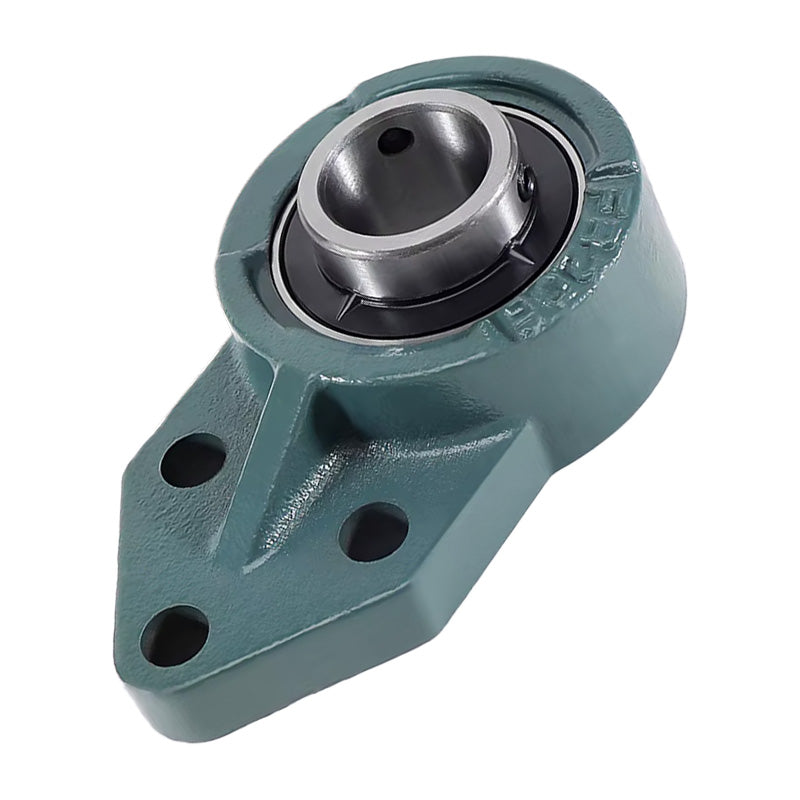

UCFB210 Metric 3 Bolt Cast Iron Bracket Flange Bearing 50mm Bore
UCFB210 Metric 3 Bolt Cast Iron Bracket Flange Bearing 50mm Bore
Regular price
£27.36
ex VAT£32.83inc. VAT
Regular price
Sale price
£27.36
ex VAT£32.83
inc. VAT
In stock
Price Break
3+
£24.35
4+
£22.99
9+
£22.71
19+
£22.44
49+
£22.16
99+
£21.89
499+
£20.52
999+
£20.25
1999+
£19.98
2999+
£19.70
4999+
£19.15
Share this product
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCFB
- Bolt Hole Centres:
- 58mm
Technical

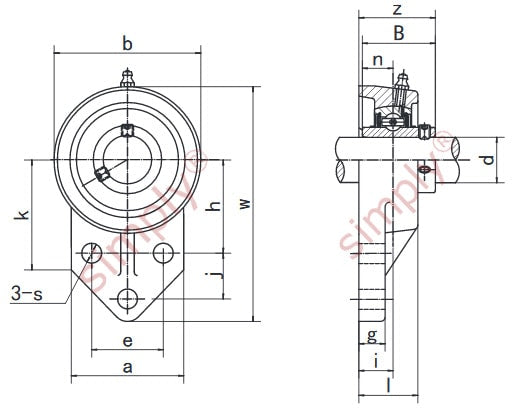

Technical
| d | 50mm |
|---|---|
| w | 184mm |
| b | 112mm |
| k | 82mm |
| a | 86mm |
| l | 40mm |
| s | 12mm |
| g | 18mm |
| h | 68mm |
| j | 46mm |
| e | 58mm |
| i | 22mm |
| z | 54.6mm |
| B | 51.6mm |
| n | 19mm |
| Bolt size | M10 |
| Bearing no | UC210 |
| Housing no | FB210 |
| Weight | 2.212 kg |
