SKU: UCFB208-25

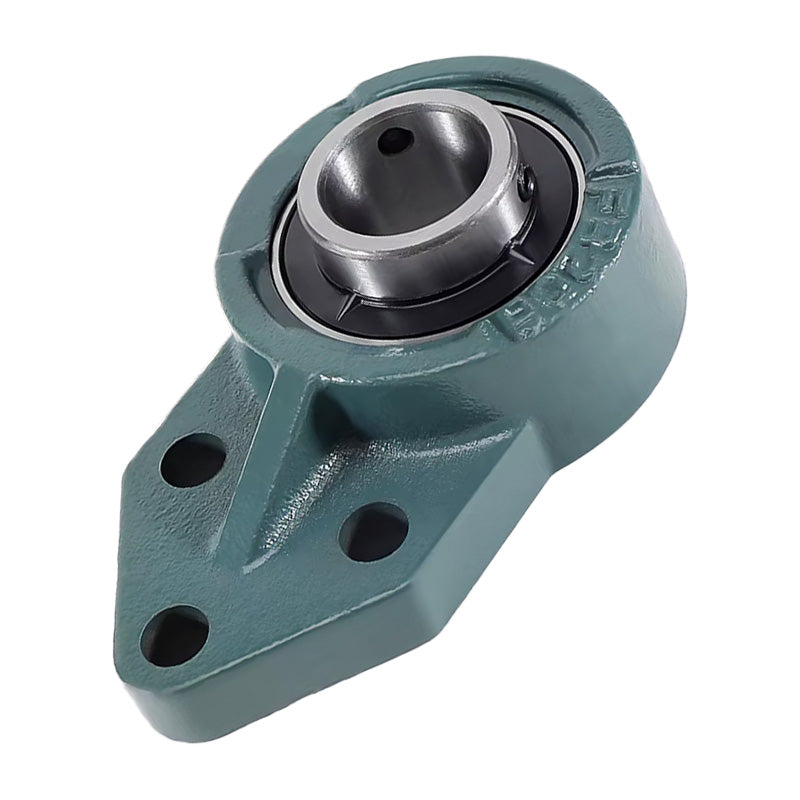

UCFB208-25 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-9/16 inch Bore
UCFB208-25 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-9/16 inch Bore
Regular price
£27.20
ex VAT£32.64inc. VAT
Regular price
Sale price
£27.20
ex VAT£32.64
inc. VAT
In stock
Price Break
3+
£24.21
4+
£22.85
9+
£22.58
19+
£22.31
49+
£22.03
99+
£21.76
499+
£20.40
999+
£20.13
1999+
£19.86
2999+
£19.59
4999+
£19.04
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCFB
- Bolt Hole Centres:
- 50.01mm = 1.969 (1-31/32) inch
Technical
Technical
| d | 1-9/16 inch |
|---|---|
| w | 6-15/32 inch |
| b | 3-15/16 inch |
| k | 2-27/32 inch |
| a | 3-1/16 inch |
| l | 1-13/32 inch |
| s | 15/32 inch |
| g | 5/8 inch |
| h | 2-23/64 inch |
| j | 1-39/64 inch |
| e | 1-31/32 inch |
| i | 53/64 inch |
| z | 1-1/64 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC208-25 |
| Housing no | FB208 |
| Weight | 1.671 kg |
