SKU: UCFB207

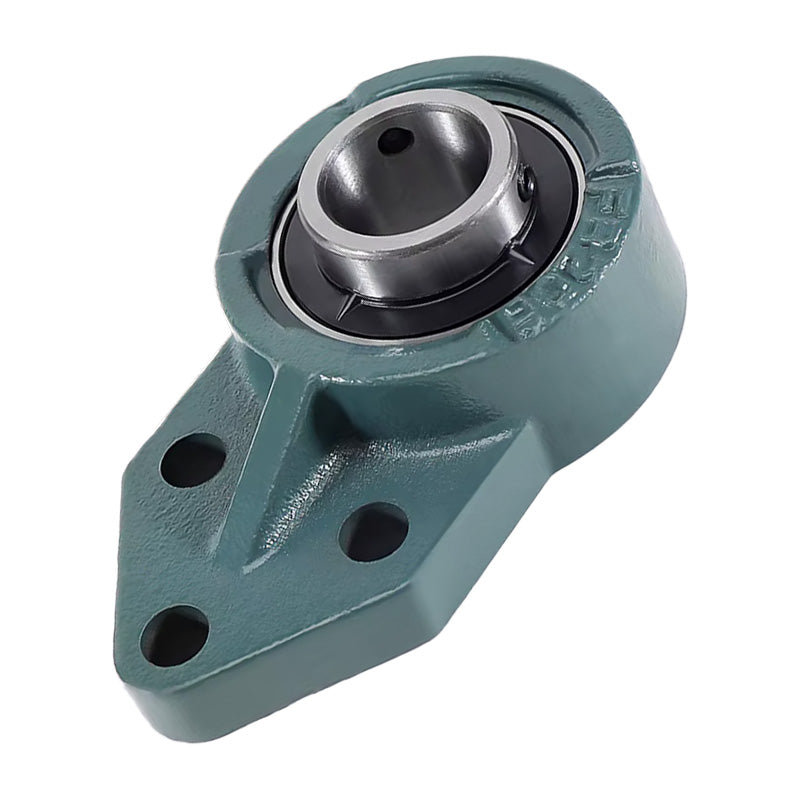

UCFB207 Metric 3 Bolt Cast Iron Bracket Flange Bearing 35mm Bore
UCFB207 Metric 3 Bolt Cast Iron Bracket Flange Bearing 35mm Bore
Regular price
£17.66
ex VAT£21.19inc. VAT
Regular price
Sale price
£17.66
ex VAT£21.19
inc. VAT
In stock
Price Break
3+
£15.72
4+
£14.84
9+
£14.66
19+
£14.48
49+
£14.31
99+
£14.13
499+
£13.25
999+
£13.07
1999+
£12.89
2999+
£12.72
4999+
£12.36
Share this product
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCFB
- Bolt Hole Centres:
- 46mm
Technical
Technical
| d | 35mm |
|---|---|
| w | 144mm |
| b | 90mm |
| k | 62mm |
| a | 70mm |
| l | 34mm |
| s | 10mm |
| g | 15mm |
| h | 55mm |
| j | 32mm |
| e | 46mm |
| i | 19mm |
| z | 44.4mm |
| B | 42.9mm |
| n | 17.5mm |
| Bolt size | M8 |
| Bearing no | UC207 |
| Housing no | FB207 |
| Weight | 1.241 kg |
