SKU: UCFB206-20

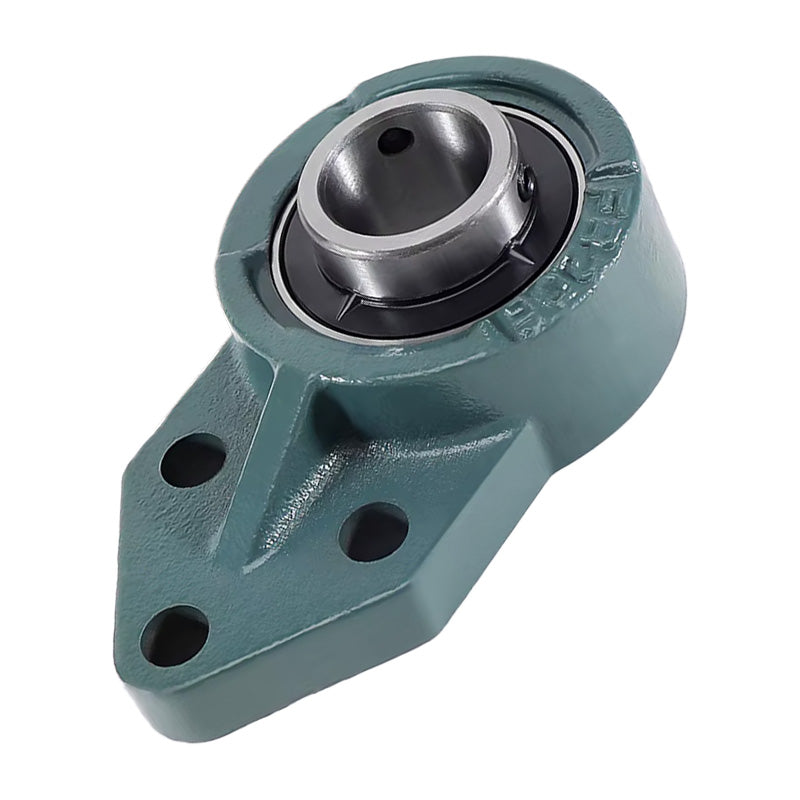

UCFB206-20 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/4 inch Bore
UCFB206-20 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/4 inch Bore
Regular price
£16.28
ex VAT£19.54inc. VAT
Regular price
Sale price
£16.28
ex VAT£19.54
inc. VAT
In stock
Price Break
3+
£14.49
4+
£13.67
9+
£13.51
19+
£13.35
49+
£13.19
99+
£13.02
499+
£12.21
999+
£12.05
1999+
£11.88
2999+
£11.72
4999+
£11.40
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCFB
- Bolt Hole Centres:
- 40.08mm = 1.578 (1-37/64) inch
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| w | 5-1/8 inch |
| b | 3-1/16 inch |
| k | 2-5/32 inch |
| a | 2-9/16 inch |
| l | 1-7/32 inch |
| s | 25/64 inch |
| g | 1/2 inch |
| h | 1-31/32 inch |
| j | 1-9/64 inch |
| e | 1-37/64 inch |
| i | 45/64 inch |
| z | 1-19/32 inch |
| B | 1.5 inch |
| n | 0.626 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC206-20 |
| Housing no | FB206 |
| Weight | 0.869 kg |
