SKU: UCFB203

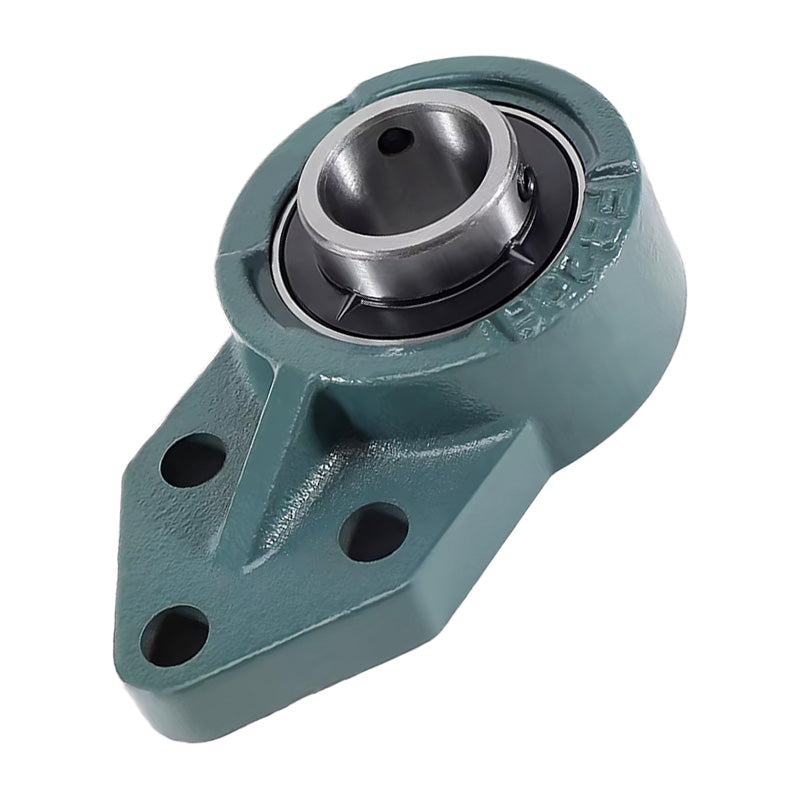

UCFB203 Metric 3 Bolt Cast Iron Bracket Flange Bearing 17mm Bore
UCFB203 Metric 3 Bolt Cast Iron Bracket Flange Bearing 17mm Bore
Regular price
£16.41
ex VAT£19.69inc. VAT
Regular price
Sale price
£16.41
ex VAT£19.69
inc. VAT
In stock
Price Break
10+
£14.60
19+
£13.78
29+
£13.62
39+
£13.46
49+
£13.29
74+
£13.13
99+
£12.31
199+
£12.14
249+
£11.98
499+
£11.82
999+
£11.49
Couldn't load pickup availability
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- UCFB
- Bolt Hole Centres:
- 32.15mm = 1.266 (1-17/64) inch
Technical
Technical
| d | 17mm |
|---|---|
| w | 110mm |
| b | 62mm |
| k | 52mm |
| a | 52mm |
| l | 25.5mm |
| s | 10mm |
| g | 13mm |
| h | 1-21/32 inch |
| j | 1-1/16 inch |
| e | 1-17/64 inch |
| i | 19/32 inch |
| z | 1-5/16 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC203 |
| Housing no | FB203 |
| Weight | 0.567 kg |
