SKU: UCFB.208

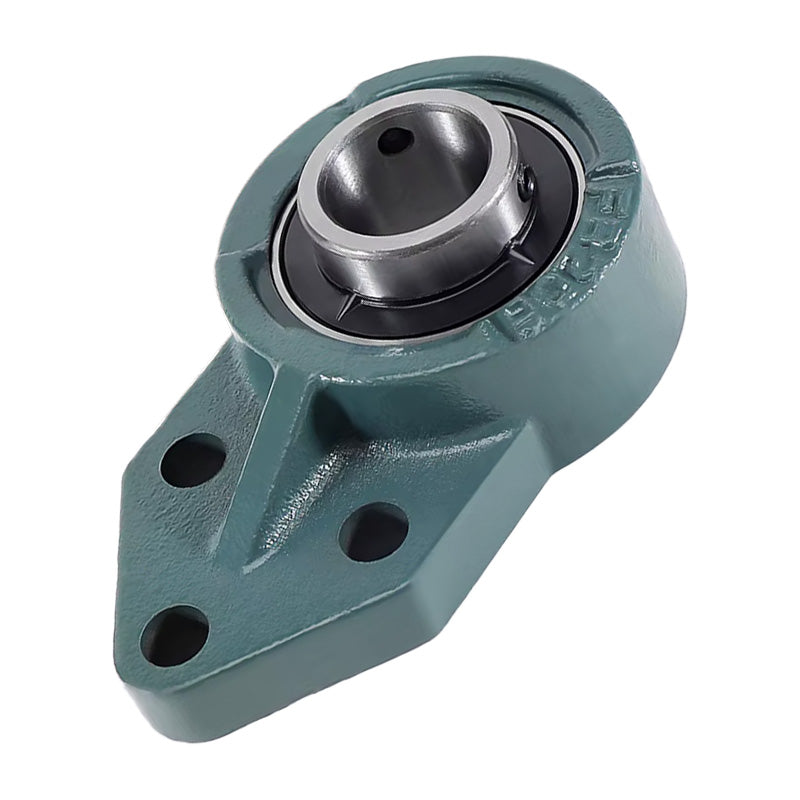

UCFB208 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
UCFB208 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
Regular price
£22.56
ex VAT£27.07inc. VAT
Regular price
Sale price
£22.56
ex VAT£27.07
inc. VAT
In stock
Price Break
10+
£20.08
19+
£18.95
29+
£18.72
39+
£18.50
49+
£18.27
74+
£18.05
99+
£16.92
199+
£16.69
249+
£16.47
499+
£16.24
999+
£15.79
Couldn't load pickup availability
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCFB
- Bolt Hole Centres:
- 50mm
Technical
Technical
| d | 40mm |
|---|---|
| w | 164mm |
| b | 100mm |
| k | 72mm |
| a | 78mm |
| l | 36mm |
| s | 12mm |
| g | 16mm |
| h | 60mm |
| j | 41mm |
| e | 50mm |
| i | 21mm |
| z | 51.2mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M10 |
| Bearing no | UC208 |
| Housing no | FB208 |
| Weight | 1.661 kg |
