SKU: UCFA213-40

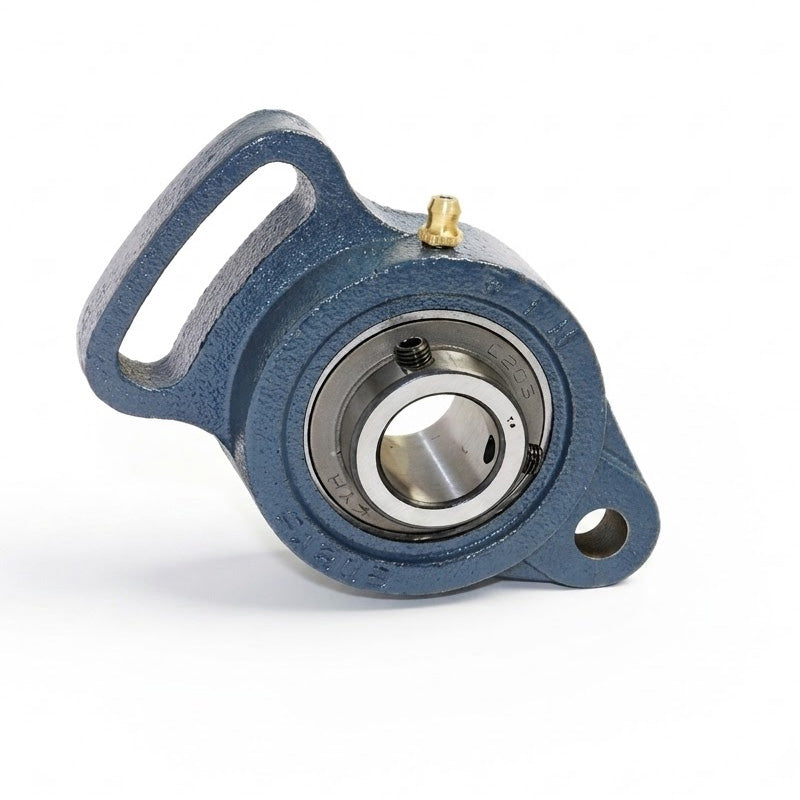

UCFA213-40 Imperial Cast Iron Adjustable Flange Unit with 2-1/2 inch Insert
UCFA213-40 Imperial Cast Iron Adjustable Flange Unit with 2-1/2 inch Insert
Regular price
£59.12
ex VAT£70.94inc. VAT
Regular price
Sale price
£59.12
ex VAT£70.94
inc. VAT
In stock
Price Break
3+
£52.62
4+
£49.66
9+
£49.07
19+
£48.48
49+
£47.89
99+
£47.30
499+
£44.34
999+
£43.75
1999+
£43.16
2999+
£42.57
4999+
£41.38
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 209.95mm = 8.266 (8-17/64) inch
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| a | 9-27/32 inch |
| e | 8-17/64 inch |
| i | 1-3/16 inch |
| g | 25/32 inch |
| l | 1-31/32 inch |
| s | 3/4 inch |
| b | 6-3/32 inch |
| z | 2-3/4 inch |
| f | 4-1/64 inch |
| c | 4-51/64 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bolt size | 5/8 inch |
| Bearing no | UC213-40 |
| Housing no | FA213 |
| Weight | 4.79 kg |
