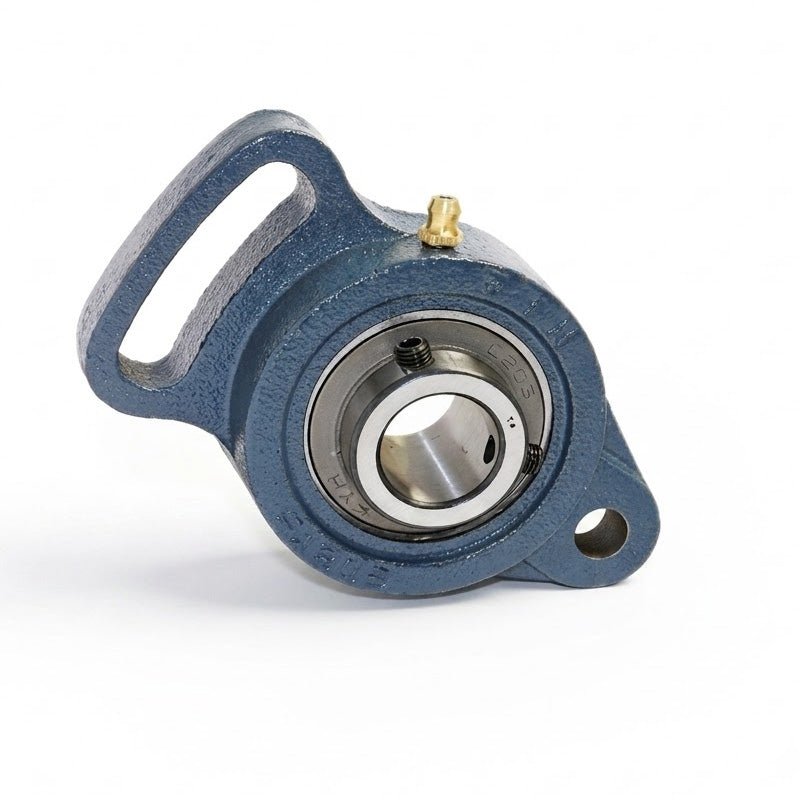

UCFA213 Metric Cast Iron Adjustable Flange Unit with 65mm Insert
UCFA213 Metric Cast Iron Adjustable Flange Unit with 65mm Insert
Regular price
£59.12
ex VAT£70.94inc. VAT
Regular price
Sale price
£59.12
ex VAT£70.94
inc. VAT
In stock
Price Break
3+
£52.62
4+
£49.66
9+
£49.07
19+
£48.48
49+
£47.89
99+
£47.30
499+
£44.34
999+
£43.75
1999+
£43.16
2999+
£42.57
4999+
£41.38
Share this product
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCFA
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 250mm |
| e | 210mm |
| i | 30mm |
| g | 20mm |
| l | 50mm |
| s | 19mm |
| b | 155mm |
| z | 69.7mm |
| f | 102mm |
| c | 122mm |
| B | 65.1mm |
| n | 25.4mm |
| Bolt size | M16 |
| Bearing no | UC213 |
| Housing no | FA213 |
| Weight | 4.7 kg |
