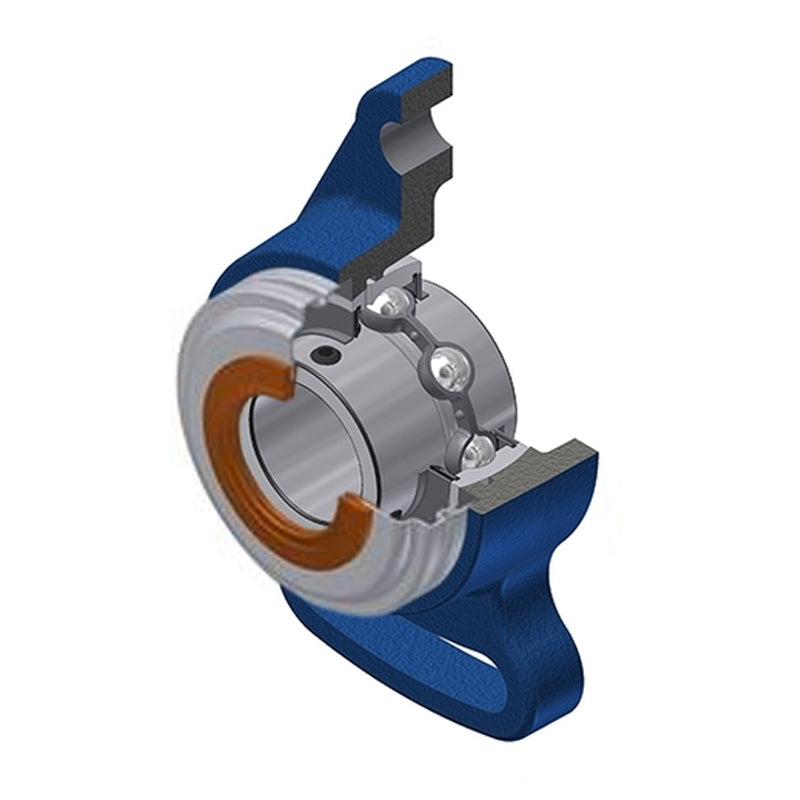

SNR UCFA212CC Metric Cast Iron Adjustable Flange Unit with 60mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFA212CC Metric Cast Iron Adjustable Flange Unit with 60mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price £110.81 ex VAT£132.97inc. VAT
Regular price Sale price £110.81 ex VAT£132.97 inc. VAT
Sale Sold out

In stock

Price Break
3+ £109.70
4+ £105.27
9+ £103.05
19+ £99.73
49+ £97.51
99+ £91.97
499+ £77.57
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 20mm
A2 68.7mm
B 65.1mm
e 29mm
H 250mm
J 202mm
J1 92mm
L 140mm
L1 118mm
N 23mm
S 25.4mm
Dz 120mm
Z 74.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.407 kg
