SKU: UCFA212-SNR

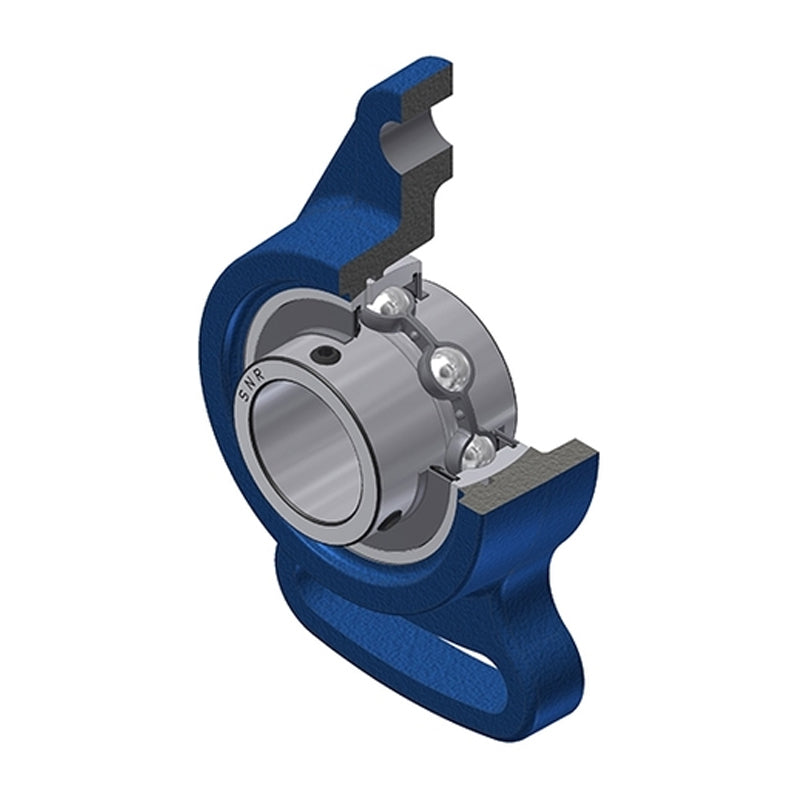

SNR UCFA212 Metric Cast Iron Adjustable Flange Unit with 60mm Insert - Allow 2-3 Days
SNR UCFA212 Metric Cast Iron Adjustable Flange Unit with 60mm Insert - Allow 2-3 Days
Regular price
£77.55
ex VAT£93.06inc. VAT
Regular price
Sale price
£77.55
ex VAT£93.06
inc. VAT
Allow 2-3 Days
In stock
Price Break
5+
£76.77
10+
£73.67
20+
£72.12
50+
£69.80
100+
£68.24
500+
£64.37
1000+
£54.29
Couldn't load pickup availability
Share this product
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFA
- Bolt Hole Centres:
- 202mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 48mm |
| A1 | 20mm |
| A2 | 68.7mm |
| B | 65.1mm |
| e | 29mm |
| H | 250mm |
| J | 202mm |
| J1 | 92mm |
| L | 140mm |
| L1 | 118mm |
| N | 23mm |
| S | 25.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.23 kg |
