SKU: UCFA211N-SNR

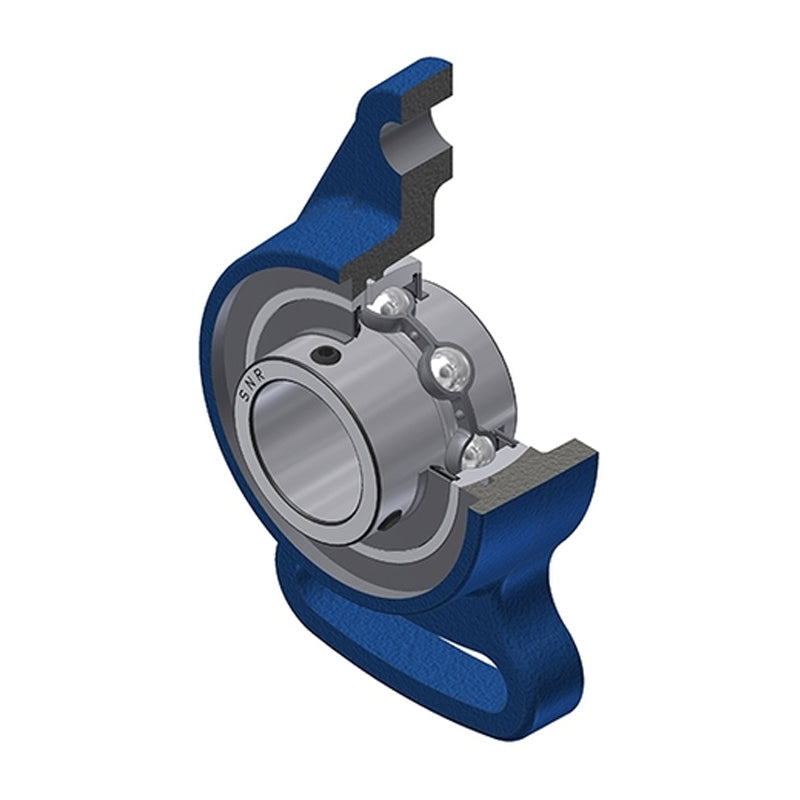

SNR UCFA211N Metric Cast Iron Adjustable Flange Unit with 55mm Insert - Allow 2-3 Days
SNR UCFA211N Metric Cast Iron Adjustable Flange Unit with 55mm Insert - Allow 2-3 Days
Regular price
£99.73
ex VAT£119.68inc. VAT
Regular price
Sale price
£99.73
ex VAT£119.68
inc. VAT
In stock
Price Break
3+
£98.73
4+
£94.74
9+
£92.75
19+
£89.76
49+
£87.76
99+
£82.78
499+
£69.81
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFA
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 43mm |
| A1 | 20mm |
| A2 | 58.4mm |
| B | 55.6mm |
| e | 25mm |
| H | 219mm |
| J | 184mm |
| J1 | 86mm |
| L | 130mm |
| L1 | 104mm |
| N | 16mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.12 kg |
