SKU: UCFA209-27

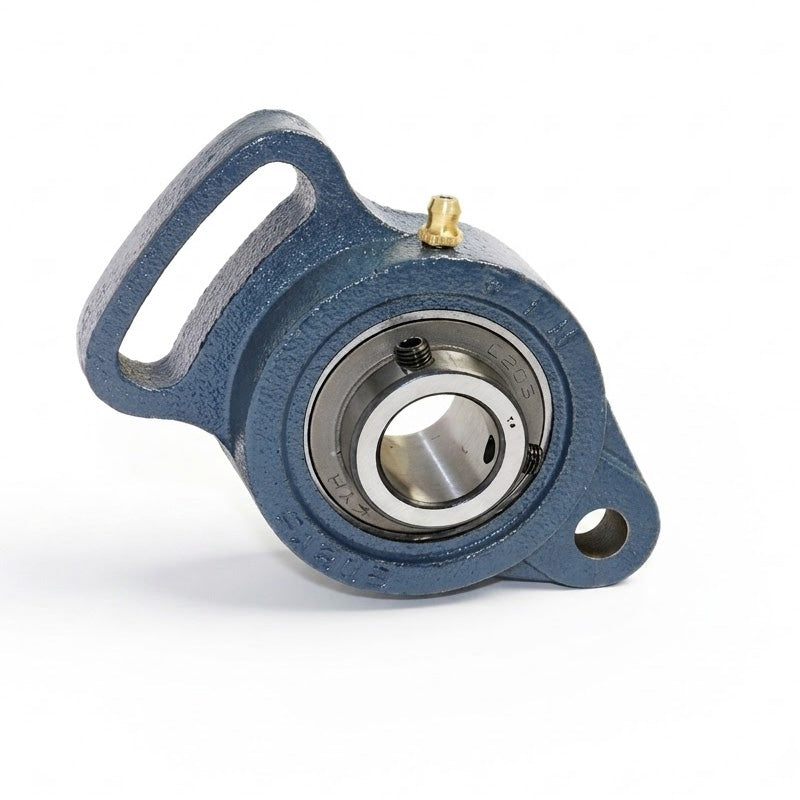

UCFA209-27 Imperial Cast Iron Adjustable Flange Unit with 1-11/16 inch Insert
UCFA209-27 Imperial Cast Iron Adjustable Flange Unit with 1-11/16 inch Insert
Regular price
£25.81
ex VAT£30.97inc. VAT
Regular price
Sale price
£25.81
ex VAT£30.97
inc. VAT
In stock
Price Break
10+
£22.97
19+
£21.68
29+
£21.42
39+
£21.16
49+
£20.91
74+
£20.65
99+
£19.36
199+
£19.10
249+
£18.84
499+
£18.58
999+
£18.07
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 146.05mm = 5.75 (5-3/4) inch
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| a | 7-3/64 inch |
| e | 5-3/4 inch |
| i | 55/64 inch |
| g | 45/64 inch |
| l | 1-37/64 inch |
| s | 43/64 inch |
| b | 4-3/8 inch |
| z | 2-1/16 inch |
| f | 2-53/64 inch |
| c | 3-35/64 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC209-27 |
| Housing no | FA209 |
| Weight | 2.04 kg |
