SKU: UCFA207-23

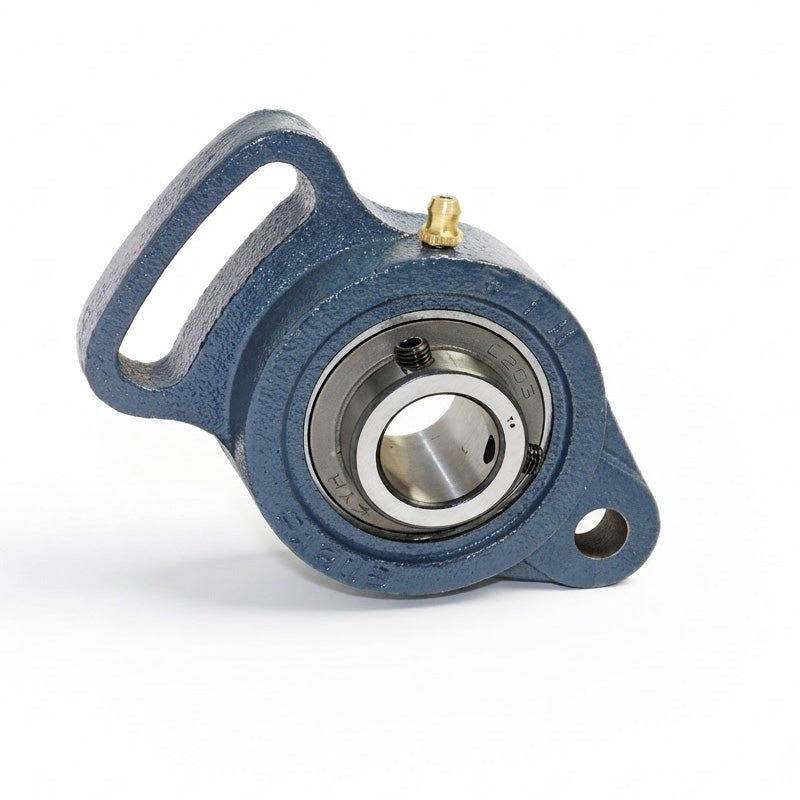

UCFA207-23 Imperial Cast Iron Adjustable Flange Unit with 1-7/16 inch Insert
UCFA207-23 Imperial Cast Iron Adjustable Flange Unit with 1-7/16 inch Insert
Regular price
£18.89
ex VAT£22.67inc. VAT
Regular price
Sale price
£18.89
ex VAT£22.67
inc. VAT
In stock
Price Break
3+
£16.81
4+
£15.86
9+
£15.67
19+
£15.49
49+
£15.30
99+
£15.11
499+
£14.16
999+
£13.98
1999+
£13.79
2999+
£13.60
4999+
£13.22
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 128.19mm = 5.047 (5-3/64) inch
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| a | 6-7/64 inch |
| e | 5-3/64 inch |
| i | 3/4 inch |
| g | 5/8 inch |
| l | 1-11/32 inch |
| s | 19/32 inch |
| b | 3-25/32 inch |
| z | 1-3/4 inch |
| f | 2-19/32 inch |
| c | 3-15/64 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bolt size | 7/16 inch |
| Bearing no | UC207-23 |
| Housing no | FA207 |
| Weight | 1.31 kg |
